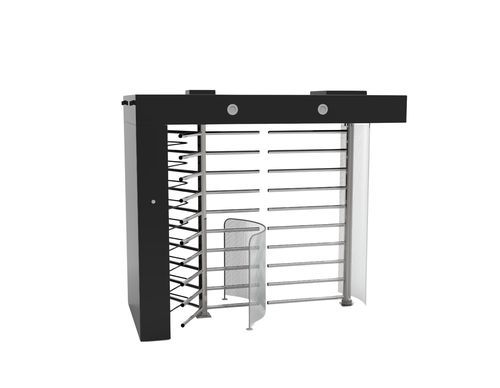

Access for people with reduced mobility turnstile MISTER FLOW PMRfull-heightpedestriandouble-way
Add to favorites
Compare this product
Characteristics
- Type
- full-height, pedestrian, double-way
- Other characteristics
- stainless steel, for access control, security, aluminium, steel, for people with reduced mobility, access for people with reduced mobility
- Market
- for public use, home
Description
DESIGN BIDIRECTIONAL PEDESTRIAN / PRM TURNSTILE
Intensive operation, up to 20 passages per minute
Usable as entry, exit or entry/exit
Delivered assembled and wired with drilling template (optional)
Integration of access control elements on the front electronic board for easier maintenance
STANDARD FEATURES
• Continuous intensive operation: Up to 20 passages per minute x2
• Gates: PRM gate opening at 90°
• Passage: 1 passage lane and 1 PRM gate, both bidirectional
• Access to control board and access control components: Door with 3 locks
• Passage indicator: Intelligent red/green authorization indicator on each side linked to access control
• Roof: Aluminum with rainwater drainage system
• Design paneling: Aluminum, polyester coating, RAL 9010
• Rotor: Direct drive without screws
• Rotary sensor: For precise 360° position detection
• Lighting: Integrated LEDs on each side
• Control unit: With IP communication
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Rotor: Arms Ø 40 mm in galvanized steel
Tubes: Ø 40 mm
Coating: Galvanization + aluminum roof, RAL 9010
Weight: 580 kg
Passage: 3 x 120° + PRM gate 920 mm
Overall dimensions (LxHxD): 2861 x 2328 x 1566 mm
PRM gate dimensions (LxHxD): 920 x 1988 x 1782 mm
Foundation dimensions (LxHxD): 2960 x 1700 x 200 mm
Passage height: 1988 mm
Passage width: Pedestrian: 675 mm – PRM: 905 mm
IP rating: 54
Intensive operation, up to 20 passages per minute
Usable as entry, exit or entry/exit
Delivered assembled and wired with drilling template (optional)
Integration of access control elements on the front electronic board for easier maintenance
STANDARD FEATURES
• Continuous intensive operation: Up to 20 passages per minute x2
• Gates: PRM gate opening at 90°
• Passage: 1 passage lane and 1 PRM gate, both bidirectional
• Access to control board and access control components: Door with 3 locks
• Passage indicator: Intelligent red/green authorization indicator on each side linked to access control
• Roof: Aluminum with rainwater drainage system
• Design paneling: Aluminum, polyester coating, RAL 9010
• Rotor: Direct drive without screws
• Rotary sensor: For precise 360° position detection
• Lighting: Integrated LEDs on each side
• Control unit: With IP communication
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Rotor: Arms Ø 40 mm in galvanized steel
Tubes: Ø 40 mm
Coating: Galvanization + aluminum roof, RAL 9010
Weight: 580 kg
Passage: 3 x 120° + PRM gate 920 mm
Overall dimensions (LxHxD): 2861 x 2328 x 1566 mm
PRM gate dimensions (LxHxD): 920 x 1988 x 1782 mm
Foundation dimensions (LxHxD): 2960 x 1700 x 200 mm
Passage height: 1988 mm
Passage width: Pedestrian: 675 mm – PRM: 905 mm
IP rating: 54
