Characteristics
- Type
- full-height, pedestrian, double-way, bidirectional
- Other characteristics
- for access control, aluminium, steel, high-traffic
- Market
- for public building, industrial, for public pool, for school, for university, for public use
Description

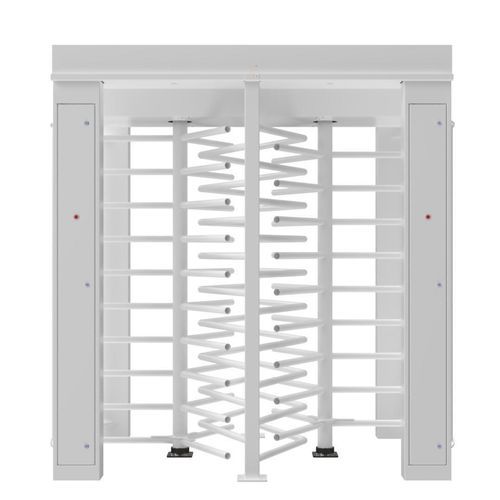

BIDIRECTIONAL PEDESTRIAN TURNSTILE WITH DOUBLE PASSAGE
Intensive operation, up to 20 passages per minute x2
Usable as entry, exit or entry/exit
Delivered assembled and wired with drilling template (optional)
Integration of access control elements on the front electronic board for easier maintenance
STANDARD FEATURES
• Continuous intensive operation: Up to 20 passages per minute x2
• Passage: 2 bidirectional passage lanes
• Access to control board and access control components: Door with 3 locks
• Passage indicator: Intelligent red/green authorization indicator on each side linked to access control
• Roof: Aluminum with rainwater drainage system
• Sheet metal: Galvanized steel, polyester coating, RAL 9010
• Rotor: Direct drive without screws
• Rotary sensor: For precise 360° position detection
• Lighting: Integrated LEDs on each side
• Control unit: With IP communication
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Rotor arms: Ø 40 mm in galvanized steel
Tubes: Ø 40 mm
Coating: Galvanization + aluminum roof, RAL 9010
Weight: 600 kg
Passage: 3 x 120° x2
Overall dimensions (LxHxD): 2383 x 2328 x 1566 mm
Foundation dimensions (LxHxD): 2600 x 1700 x 200 mm
Passage height: 1988 mm
Passage width: 2 x 601 mm
IP rating: 54
Intensive operation, up to 20 passages per minute x2
Usable as entry, exit or entry/exit
Delivered assembled and wired with drilling template (optional)
Integration of access control elements on the front electronic board for easier maintenance
STANDARD FEATURES
• Continuous intensive operation: Up to 20 passages per minute x2
• Passage: 2 bidirectional passage lanes
• Access to control board and access control components: Door with 3 locks
• Passage indicator: Intelligent red/green authorization indicator on each side linked to access control
• Roof: Aluminum with rainwater drainage system
• Sheet metal: Galvanized steel, polyester coating, RAL 9010
• Rotor: Direct drive without screws
• Rotary sensor: For precise 360° position detection
• Lighting: Integrated LEDs on each side
• Control unit: With IP communication
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Rotor arms: Ø 40 mm in galvanized steel
Tubes: Ø 40 mm
Coating: Galvanization + aluminum roof, RAL 9010
Weight: 600 kg
Passage: 3 x 120° x2
Overall dimensions (LxHxD): 2383 x 2328 x 1566 mm
Foundation dimensions (LxHxD): 2600 x 1700 x 200 mm
Passage height: 1988 mm
Passage width: 2 x 601 mm
IP rating: 54
