Compressed air bollard EDR12electrical distributionretractableautomatic
Add to favorites
Compare this product
Characteristics
- Function
- electrical distribution
- Technical characteristics
- retractable, automatic
- Material
- stainless steel
- Other characteristics
- high-resistance, water supply, for compressed air
- Location
- for public space, outdoor, for public building
- Height
74 cm
(29 in)
Description

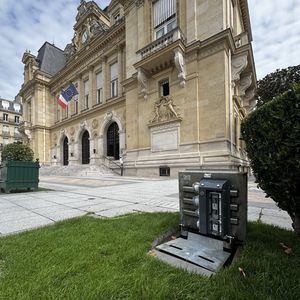

RETRACTABLE ENERGY DISTRIBUTION BOLLARD
WATER, ELECTRICITY, COMPRESSED AIR...
All-stainless steel mechanism and socket supports
Cable entry integrated into the cover plate
Fillable cover plate
Custom-made configurations
Compliant with NFC 17-200 & NFC 15-100
STANDARD FEATURES
• Retractable energy distribution bollard
• Retractable system:
• Pivot opening assisted by gas strut
• Custom double-pin lock
• Residual current circuit breakers protected behind an IP66 window
• Automatic ventilation of the junction box to prevent condensation (when open)
• Equipment mounted on a stainless steel flange
• Chassis:
• Stainless steel frame
• Stainless steel fillable cover plate (height 35 mm)
• Cable entry for use when closed
• High load resistance in closed position
• Main disconnection via 63 or 125 A / 400 V switch disconnector
• Compliant with NFC 17-200 / NFC 15-100
• 63 A + water supply with a single 63 A socket
TECHNICAL SPECIFICATIONS
Power supply: 400 V
Finish: Stainless steel
Chassis dimensions (W-D-H): 350 x 490 x 740 mm
Cover plate dimensions (W-D-H): 340 x 35 x 460 mm
WATER, ELECTRICITY, COMPRESSED AIR...
All-stainless steel mechanism and socket supports
Cable entry integrated into the cover plate
Fillable cover plate
Custom-made configurations
Compliant with NFC 17-200 & NFC 15-100
STANDARD FEATURES
• Retractable energy distribution bollard
• Retractable system:
• Pivot opening assisted by gas strut
• Custom double-pin lock
• Residual current circuit breakers protected behind an IP66 window
• Automatic ventilation of the junction box to prevent condensation (when open)
• Equipment mounted on a stainless steel flange
• Chassis:
• Stainless steel frame
• Stainless steel fillable cover plate (height 35 mm)
• Cable entry for use when closed
• High load resistance in closed position
• Main disconnection via 63 or 125 A / 400 V switch disconnector
• Compliant with NFC 17-200 / NFC 15-100
• 63 A + water supply with a single 63 A socket
TECHNICAL SPECIFICATIONS
Power supply: 400 V
Finish: Stainless steel
Chassis dimensions (W-D-H): 350 x 490 x 740 mm
Cover plate dimensions (W-D-H): 340 x 35 x 460 mm
