Water supply bollard EDRPROelectrical distributionretractableautomatic
Add to favorites
Compare this product
Characteristics
- Function
- electrical distribution
- Technical characteristics
- retractable, automatic
- Material
- stainless steel
- Other characteristics
- high-resistance, weather-resistant, water supply, for compressed air
- Location
- for public space, outdoor, for public building, for public entity
- Height
50 cm
(20 in)
Description

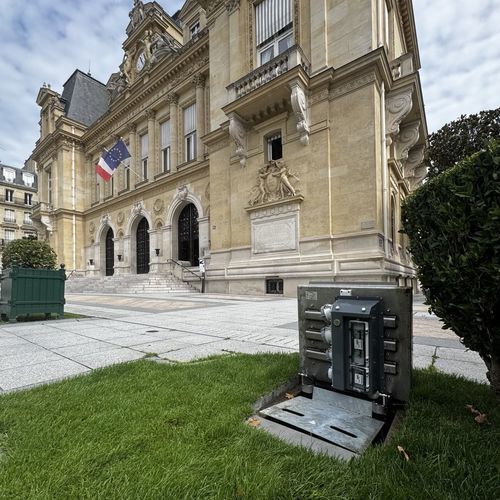

RETRACTABLE ENERGY DISTRIBUTION BOLLARD
WATER, ELECTRICITY, COMPRESSED AIR...
Very shallow installation depth
Cable entry integrated into the chassis
Fillable cover plate
Emergency stop accessible when bollard is closed
Compliant with NFC 17-200 & NFC 15-100
STANDARD FEATURES
• Retractable energy distribution bollard
• Retractable system:
• Pivot opening assisted by gas strut
• Custom oval lock
• Residual current circuit breakers protected behind an IP66 window
• Automatic ventilation of the junction box to prevent condensation (when open)
• Chassis:
• Shallow depth
• Stainless steel frame
• Stainless steel fillable cover plate (height 50 mm)
• Cable entry for use when closed
• High load resistance in closed position
• Main disconnection via 63 or 125 A / 400 V switch disconnector accessible when open and closed
• Emergency stop accessible when closed
• Compliant with NFC 17-200 / NFC 15-100
TECHNICAL SPECIFICATIONS
Power supply: 400 V
Finish: Stainless steel
Chassis dimensions (W-D-H): 1,115 x 814 x 373 mm
Cover plate dimensions (W-D-H): 630 x 600 x 50 mm
Operating temperature: -30°C to +50°C
Protection rating: IP66
WATER, ELECTRICITY, COMPRESSED AIR...
Very shallow installation depth
Cable entry integrated into the chassis
Fillable cover plate
Emergency stop accessible when bollard is closed
Compliant with NFC 17-200 & NFC 15-100
STANDARD FEATURES
• Retractable energy distribution bollard
• Retractable system:
• Pivot opening assisted by gas strut
• Custom oval lock
• Residual current circuit breakers protected behind an IP66 window
• Automatic ventilation of the junction box to prevent condensation (when open)
• Chassis:
• Shallow depth
• Stainless steel frame
• Stainless steel fillable cover plate (height 50 mm)
• Cable entry for use when closed
• High load resistance in closed position
• Main disconnection via 63 or 125 A / 400 V switch disconnector accessible when open and closed
• Emergency stop accessible when closed
• Compliant with NFC 17-200 / NFC 15-100
TECHNICAL SPECIFICATIONS
Power supply: 400 V
Finish: Stainless steel
Chassis dimensions (W-D-H): 1,115 x 814 x 373 mm
Cover plate dimensions (W-D-H): 630 x 600 x 50 mm
Operating temperature: -30°C to +50°C
Protection rating: IP66
