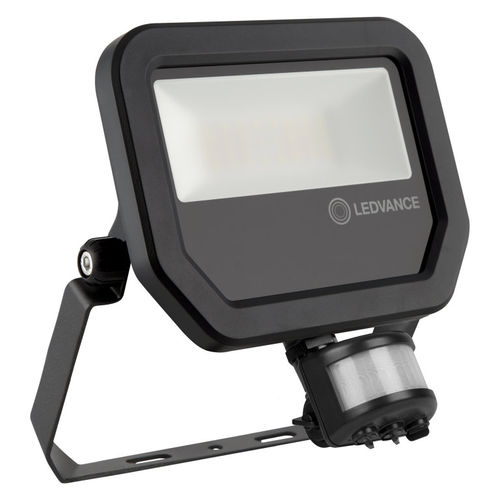

IP65 floodlight 4058075460980 series
LEDfor construction sitesindustrial

IP65 floodlight
IP65 floodlight
IP65 floodlight
IP65 floodlight
IP65 floodlight
IP65 floodlight
IP65 floodlight
Add to favorites
Compare this product


Characteristics

Protection class
IP65
Light source
LED
Market
for public spaces, building, industrial, for construction sites
Location
outdoor
Other characteristics
adjustable, with motion sensor

Description

Product benefits Bright, robust and durable Demand optimized illumination due to flexible and programmable sensor Easy adjustment of sensor range, daylight detection and hold time Always-on override, activated via special mains switching pattern Safe and very uniform illumination, due to frosted and tempered glass diffuser Energy savings of up to 90 % compared to halogen lamp floodlights 5 years guarantee ELECTRICAL DATA Nominal wattage - 20.00 W Operating mode - Integrated LED driver Nominal voltage - 100…277 V Power factor λ - > 0.90 Mains frequency - 50/60 Hz Max. no. of lum. on circuit break. B16 A - 85 Max. no. of lum. on circuit break. C10 A - 62 Max. no. of lum. on circuit break. C16 A - 99 Inrush current - 7.34 A Total harmonic distortion - < 20 % Inrush current time Th50 - 35.5 µs PHOTOMETRICAL DATA Color temperature - 3000 K Luminous flux - 2200 lm Luminous efficacy - 110 lm/W Standard deviation of color matching - ≤5 sdcm Light color (designation) - Warm White Color rendering index Ra - ≥80 LIGHT TECHNICAL DATA Beam angle - 100 ° x 100 ° LUMINAIRE SENSOR DATA Type of sensor - Motion / Light Sensor technology - Passive infrared/Photocell Sensor detection angle - 40°...160 ° Detection range of motion sensor - 2…12 m Detection threshold of daylight sensor - 10…2000 lx Sensor controlled switching time - 10 s…12 min Sensor IP rating - IP65 DIMENSIONS & WEIGHT Length - 176.0 mm Width - 156.0 mm Height - 55.0 mm Product weight - 570.00 g Cable length - 1000 mm COLORS & MATERIALS Body material - Aluminum Product color - Black Housing color - Black TEMPERATURES & OPERATING CONDITIONS Ambient temperature range - -30…+50 °C
