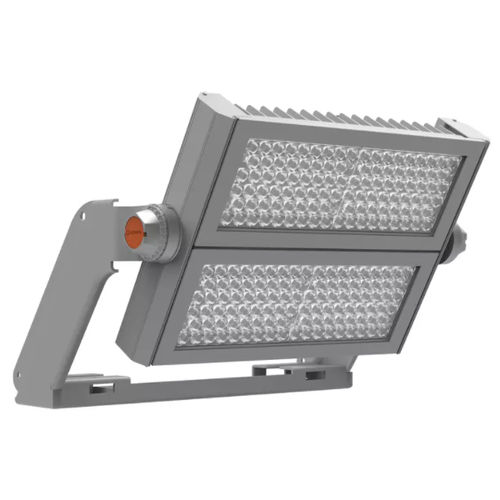

IP66 floodlight 4058075580589
LEDcommercialoutdoor

IP66 floodlight
IP66 floodlight
Add to favorites
Compare this product


Characteristics

Protection class
IP66
Light source
LED
Application
commercial
Interior/exterior use
outdoor
Type
pole-mounted, surface-mounted
Shape
rectangular
Dimmable
not dimmable
Other characteristics
adjustable
Height

279 mm (11 in)

Length

472 mm (19 in)

Width

591 mm (23 in)

Power

600 W

Luminous flux

78,000 lm, 80,500 lm, 81,000 lm, 82,000 lm

Color temperature

5,700 K

Color rendering index (CRI)

70 unit

Description

Very bright, robust and durable Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps Easy dimming to 50% by wiring No upper light output ratio (ULOR 0%) when mounted at 0° tilt Optimized logistic, luminaire head and power supply arrive in individual packaging Low flicker light 5 years guarantee Nominal voltage - 180 V Nominal current - 3160 mA Operating mode - Integrated LED driver Luminous efficacy - 130 lm/W Color temperature - 5700 K Light color (designation) - Cool Daylight Standard deviation of color matching - < 5 sdcm Luminous intensity - - Low flicker - Yes Flickering metric (Pst LM) - - Stroboscope effect metric (SVM) - - Photobiological safety group acc. to EN62778 - RG2 Beam angle - 10 ° Product weight - 15800.00 g Cable length - 1300 mm Product color - White aluminum Housing color - White aluminum Body material - Aluminum Cover material - Glass Light emitting surface material - Glass Glow Wire Test according to IEC 60695-2-12 - 650 °C Mercury content - 0.0 mg Ambient temperature range - -30…+50 °C Temperature range at storage - -40…+70 °C Type of connection - Terminal, 3-Pole (L, N, PE) Protection class IK (shock resistance) - IK08 Dimmable - No Mounting type - Surface Mounting location - Wall, Pole, Floor Adjustable - Yes LED module replaceable - Not replaceable With light source - Yes Lifespan L70/B50 at 25 °C - 100000 h Lifespan L80/B10 at 25 °C - 75000 h Lifespan L90/B10 at 25 °C - 50000 h Number of switching cycles - 100000 Standards - CE, CB, ENEC, EAC Luminaire with limited surface temperature, "D sign" - No Ball shot safe - No
