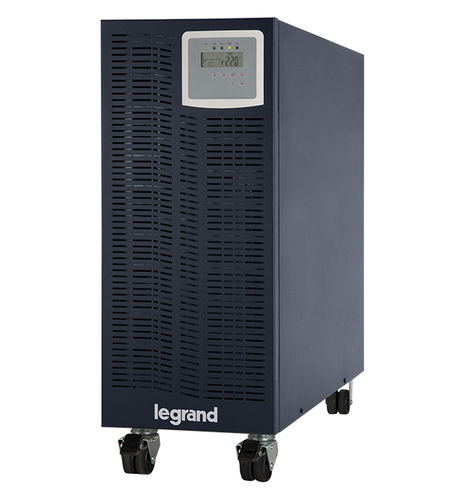

Industrial UPS KEOR S

single-phaseon casters

Keor S UPS is a single phase uninterruptible power supply with IGBT switching technology, high frequency PWM technology, Double Conversion On-line, it delivers a rated power of 3-6-10kVA. The architecture of this UPS means it can be installed in a Tower configuration. Two different models are available as internal configuration; internal battery only or input isolation transformer with internal battery. Addition to these configurations, simultaneous using of both internal and external battery is possible by DC switch protections. GENERAL FEATURES - 3kVA to 10KVA Capacity Range - 1 Phase Input / 1 Phase Output - IGBT Inverter - IGBT Rectifier - High Efficiency - Digital Signal Processor (DSP) - High Input Power Factor (PFC) - High Output Power Factor - Low Input and Output Total Harmonic Distortion (THD) - Generator Compatible Operation - Standard IP31 Protection for Industrial Applications - On Site Modular Paralleling Capability up to 4 Units (except 3kVA) - Additional External Chargers for Long Back-Up Time Solutions (6-10kVA only) - Availability of Different Communication Types FUNCTION - User friendly diagnostic - Advanced management and communication - Integrated By-pass for maintenace - LCD display with interactive menù
