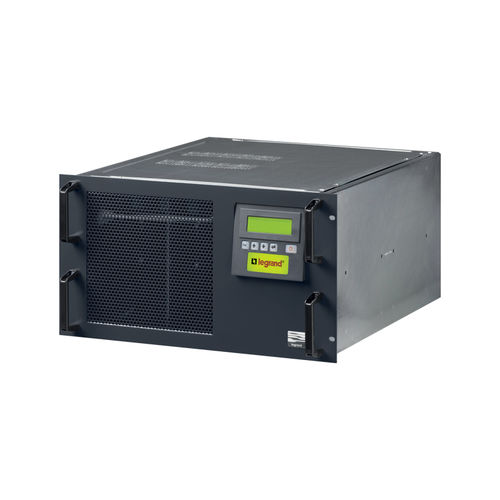

Commercial UPS MEGALINE RACK
single-phasemodularrack-mount

commercial UPS
commercial UPS
commercial UPS
commercial UPS
commercial UPS
commercial UPS
commercial UPS
commercial UPS
Add to favorites
Compare this product


Characteristics

Sector
commercial
Other characteristics
single-phase, modular, rack-mount, IP21
Power KVA

1.25 kVA, 2.5 kVA, 3.75 kVA, 5 kVA
(1.7 hp, 3.399 hp, 5.099 hp, 6.798 hp)

Height

133 mm, 266 mm
(5.2 in, 10.5 in)

Width

483 mm
(19 in)

Depth

582 mm, 584 mm
(22.9 in, 23 in)

Description

MEGALINE RACK UPS is a single phase uninterruptible power supply with high frequency PWM technology, On Line Double Conversion type, modular architecture, with the possibility of N+X redundant configuration, for 19” rack cabinet. It delivers a rated power from 1250 to 5000VA, equipped with valve-regulated hermetic-type accumulator batteries, contained inside the UPS in a specific compartment or in one or more external cabinets. GENERAL FEATURES - Single-phase modular UPS systems (19” rack) - VFI-111 on-line double conversion - Adaptable, expandable and redundant solutions - Easy and fast management and maintenance FUNCTIONS - Wide voltage range and input frequency - Operating frequency from 50 to 60 Hz with auto-recognition - Frequency conversion 50 in – 60 out or vice versa - Extension of the input frequency range for operation with power-supply units - Operation in eco mode (energy-saving) - Possibility to set on line mode with a minimum load rate - Adjustable output voltage with 1V intervals from front panel - Low level of noise - Measures internal and external temperature - Controls the ventilation in relation to the temperature and the load - Designed for remote emergency switch-off
