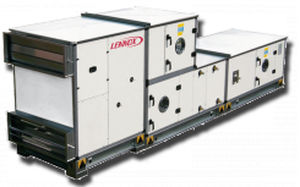

Air handling unit CLEANAIR LX

Market segments: Food Retail, Hospitals, Industry, Non food retail, Restaurants, Shopping malls Product family: Airside products Product range: Air handling units Air flow (m³/h): 1000 – 100000 Cooling (kW): 5 - 550 Heating (kW): 10 > 1300 Eurovent: Certified product Available in 44 sizes, with total pressure up to 2.500 Pa Modular unit Aluminium frame with 60 mm sandwich panels EN 1886 classification for standard construction MAIN APPLICATIONS Food and non food retail, shopping malls (airports restaurants, shops, …) Industrial buildings Hospitals DESCRIPTION Modular air handling units Adapted to any air treatment application : ventilation, filtration, heating, cooling, humidity and recovery, and allowing the best choice in relation to the requested face velocity Wide range : 44 sizes from 1 000 up to 100 000 m3/h with total pressures up to 2 500 Pa (28 basic sizes and 16 low profile sizes) CLEANAIR LX units developed and dimensioned in length, width and height, using a module of 160 mm If necessary, distinctly rectangular cross-section fitted with ow profile units, in order to reduce the height while increasing the width
