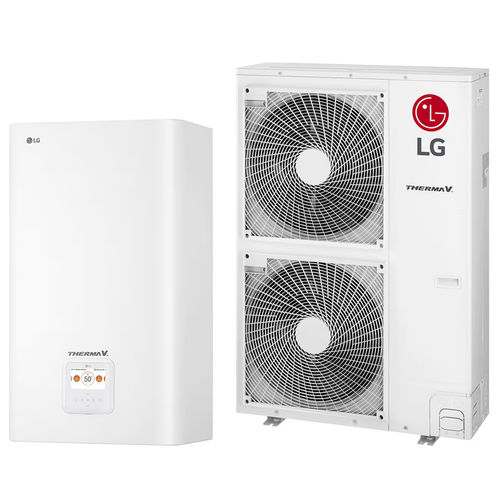

Air/water heat pump R410A

commercialresidentialoutdoor

No risk of pipe freezing Refrigerant pipe robust to cold ensures no potential risk of pipe freezing even during prolonged blackouts. Remarkable performance in cold Wide operation range ensures remarkable heating performance even in an extremely cold weather. Low noise level Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas. All Spec SEASONAL EFFICIENCY DATA (HEATING) Seasonal space heating eff. class (35℃ / 55℃) A+++/A++ Seasonal space heating efficiency (ηS) (35℃ / 55℃) 179 / 130 182 / 132 183 / 131 SCOP (35℃ / 55℃) 4.56 / 3.32 4.61 / 3.37 4.65 / 3.36 NOMINAL CAPACITY AND COP (A+7/W+35) COP 4.26 4.55 4.41 NOMINAL CAPACITY AND COP (A+2/W+35) COP 3.60 3.62 3.61 NOMINAL CAPACITY AND COP (A+7/W+55) COP 2.55 NOMINAL CAPACITY AND EER (A+35/W+18) EER 3.61 4.00 3.90 NOMINAL CAPACITY AND EER (A+35/W+7) EER 3.53 2.98 2.81 OPERATION RANGE (OUTDOOR AIR TEMPERATURE) Heating & DHW (Min. ~ Max.) (℃) -25 ~ 35 Cooling (Min. ~ Max.) (℃) 5 ~ 48 OPERATION RANGE (LEAVING WATER TEMPERATURE) Heating (Min. ~ Max.) (℃) 15 ~ 57 Cooling (Min. ~ Max.) (℃) 5 ~ 27 DHW (Min. ~ Max.) (℃) 15 ~ 80 REFRIGERANT Type R410A GWP 2,088 Precharged amount (g) 2,500 PIPING CONNECTIONS (REF./OUTDOOR UNIT) Gas (mm (inch)) Ø 15.88 (5/8) Liquid (mm (inch)) Ø 9.52 (3/8) Length standard / Max. (m) 7.5 / 30 Level difference Max. (m) 30 Max. length without additional charge (m) 7.5 Mass of additional ref. charge (g/m) 40 PIPING CONNECTIONS (WATER/INDOOR UNIT) Inlet diameter for space heating (inch) Male PT 1" Outlet diameter for space heating (inch) Male PT 1" WEIGHT Outdoor unit (Empty) (kg) 84.8 85.4
