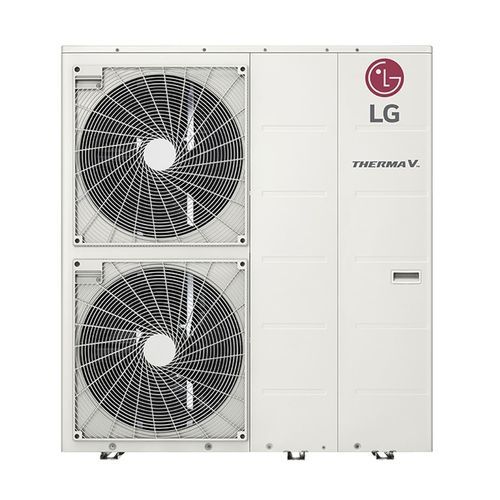

Air/water heat pump R32

commercialresidentialoutdoor

Space-efficient all in one unit All-in-one outdoor unit includes all hydronic components in a package, ensuring space-efficiency and simplified installation. Remarkable performance in cold Wide operation range ensures remarkable heating performance even in an extremely cold weather. Low noise level Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas. All Spec SEASONAL EFFICIENCY DATA Seasonal space heating eff. class (35℃ / 55℃) A+++/A++ Seasonal space heating efficiency (ηS) (35℃ / 55℃) 182 / 135 184 / 136 178 / 135 SCOP (35℃ / 55℃) 4.62 / 3.46 4.67 / 3.47 4.53 / 3.45 NOMINAL CAPACITY AND COP (A+7/W+35) COP 4.80 4.90 4.70 NOMINAL CAPACITY AND COP (A+2/W+35) COP 3.63 3.60 NOMINAL CAPACITY AND COP (A+7/W+55) COP 2.85 2.90 2.80 NOMINAL CAPACITY AND EER (A+35/W+18) EER 4.30 4.75 4.00 NOMINAL CAPACITY AND EER (A+35/W+7) EER 3.30 3.10 OPERATION RANGE (OUTDOOR AIR TEMPERATURE) Heating & DHW (Min. ~ Max.) (℃) -25 ~ 35 Cooling (Min. ~ Max.) (℃) 5 ~ 48 OPERATION RANGE (LEAVING WATER TEMPERATURE) Heating (Min. ~ Max.) (℃) 15 ~ 65 Cooling (Min. ~ Max.) (℃) 5 ~ 27 DHW (Min. ~ Max.) (℃) 15 ~ 80 REFRIGERANT Type R32 GWP 675 Precharged amount (g) 2,000 PIPING CONNECTIONS (WATER) Inlet diameter (inch) Male PT 1" Outlet diameter (inch) Male PT 1" SOUND POWER LEVEL Rated / low noise mode (dB(A)) 61 / 57 60 / 56 EXTERIOR Color Warm gray RAL code RAL 7044 POWER SUPPLY Voltage, phase, frequency (V, Ø, Hz) 220-240, 1, 50 380-415, 3, 50
