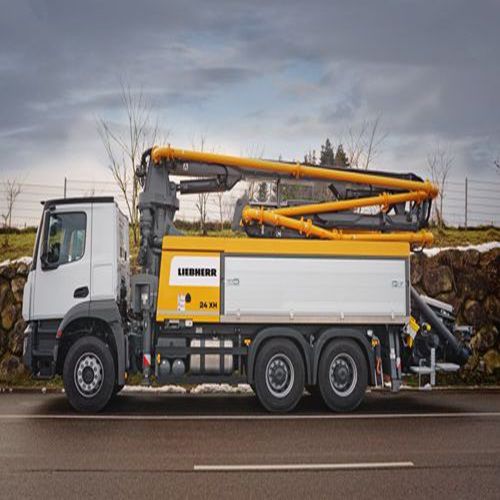

The 24 M4 XH impresses with its low unfolding height of the multi-distribution boom, which is particularly advantageous in hall and tunnel construction.
Vertical reach23.7 m
Horizontal reach19.7 m
Unfolding height4.90 m
End hose length4 m
Supporting equipmentXH
Pump units
140H
170H
Maximum flow rate (rod end) [m³/h]
138
163
Maximum concrete pressure (rod end) [bar]
80
80
Pump cycles (rod end) [rpm]
28
32
VariantsDownloads Videos
Rugged
The rugged design ensures reliable operation
over several years with low operating costs.
Optimised servicing requirements
Various design details simplify the
replacement of wear parts, thus optimising
servicing.
High-Tech
Advanced structural designs and state-ofthe-art
manufacturing technologies produce
a dependable, sturdy construction for the
toughest of everyday applications.
