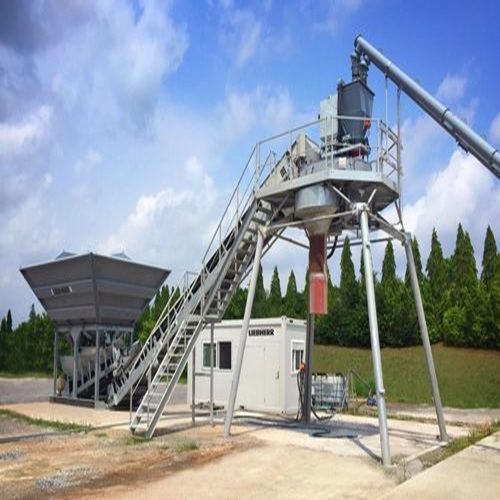

Mobile concrete mixing plant LCM 1.0

reversing drumautomatic

Overview
The LCM 1.0 is a concrete mixing plant designed for mobile and semi-permanent installations. It combines preassembled subassemblies and steel foundations for simplified transport and fast site assembly. The plant is operated via an intuitive laptop-based control system. Availability: outside Western Europe.

Key features

• Theoretical output (compacted concrete): 69 m³/h
• Mixer type: R / RIM
• Mixer capacity: 1.00 m³
• Preassembled subassemblies and steel foundations for mobile use
• Laptop-operated intuitive control system
• Availability: outside Western Europe

Technical data
Theoretical discharge output in compacted mixed concrete: 69 m³/h
Mixer type: R / RIM
Mixer size: 1.00 m³
Max. number of aggregate chambers in-line silo: 4
Max. aggregate storage capacity in-line silo: 100 m³
Max. aggregate storage capacity in-line silo per chamber: 25 m³
Max. number of aggregate chambers pocket silo: 4
Max. aggregate storage capacity pocket silo: 40 m³
Max. number of cement types: 3
Max. filling amount of each cement silo: 100 t

Characteristics / technical specifications

• Theoretical discharge output: 69 m³/h
• Mixer: R / RIM, 1.00 m³
• Aggregate in-line silo: up to 4 chambers (total 100 m³, 25 m³ per chamber)
• Pocket silo: up to 4 chambers (total 40 m³)
• Cement silos: up to 3 types, 100 t per silo
