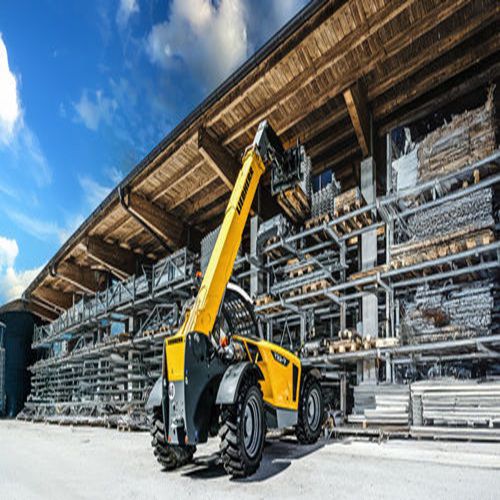

Loading telehandler T 32-7

handlingliftingfor construction

Overview
The Liebherr telescopic handler T 32-7 is a versatile telehandler for warehouse logistics, building-materials trade and landscaping. Fast and manoeuvrable, it features powerful working hydraulics to transport large material volumes efficiently and stack quickly to maximum lift height.

Highlights

• Generation: 6
• Engine output (ISO 3046): 105 kW / 143 HP
• Hydraulics pump flow max.: 106 l/min
• Max. lift height: 6,925 mm
• Max. lift capacity: 3,200 kg
• Max. forward reach: 3,996 mm

What's inside

• The hydrostatic Liebherr drive system – Short cycle times with low fuel consumption thanks to the hydrostatic drive.
• Heavy-duty working hydraulics – Sensitive joystick control with end-position damping for lifting, lowering and telescoping.
• Agile and intuitive to operate – High manoeuvrability via four selectable steering modes and a logical control layout for operator changes.
• Built around the operator – Ergonomic comfort cabin with all-round visibility for safe, relaxed operation.
• Quick maintenance and service – Readily accessible service points and global Liebherr service network with trained technicians.

Technical data
Operating weight: 7,350 kg
Engine output (ISO 3046): 105 kW / 143 HP
Max. lift height: 6,925 mm
Max. lift capacity: 3,200 kg
Max. forward reach: 3,996 mm
Hydraulics pump flow max.: 106 l/min

Features / technical specifications

• Generation: 6
• Operating weight: 7,350 kg
• Engine output (ISO 3046): 105 kW / 143 HP
• Hydraulics pump flow max.: 106 l/min
• Max. lift height: 6,925 mm
• Max. lift capacity: 3,200 kg
• Max. forward reach: 3,996 mm
