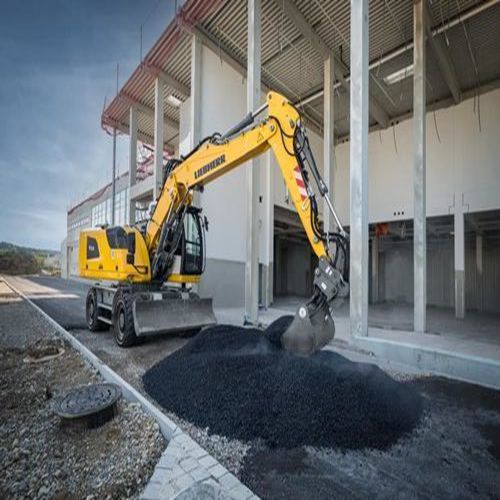

Wheeled excavator A 916 LITRONIC

handlingmulti-functioncompact

Description
The A 916 Litronic is a wheeled excavator engineered for versatile earthmoving, urban construction and material handling tasks. Its compact mobility and wide range of equipment options make it suitable for roadwork, utilities, landscaping and site preparation. Quick-change systems and a broad selection of Liebherr attachments increase jobsite flexibility.

Key attributes

• Generation: 6
• Operating weight: 16,400 - 18,700 kg
• Engine output (ISO 9249): 115 kW / 156 HP
• Engine output (SAE J1349): 115 kW / 154 hp
• Emission stage: V
• Average consumption (per operating hour): 6.70 l/h
• Backhoe bucket capacity: 0.17 - 1.05 m³
• Grab capacity: 0.17 - 0.80 m³

Technical data (summary)
Operating weight: 16,400 - 18,700 kg
Engine output (ISO 9249): 115 kW / 156 HP
Engine output (SAE J1349): 115 kW / 154 hp
Emission stage: V
Backhoe bucket capacity: 0.17 - 1.05 m³
Grab capacity: 0.17 - 0.80 m³

Compatible attachments & applications

• SWA 33 LIKUFIX — fully hydraulic quick coupler; weight: 144 kg
• SWA 33 M — mechanical quick coupler; weight: 100 kg
• PG SWA 33 FEM II (forks / pallet forks) — width: 1,245 mm; weight: 345 kg; class: 14–18 t
• Tilt bucket Class 90 — compatible with SWA 33 / SWA 33 LIKUFIX / SWA 48 variants
• SG 25B — direct-mount and suspended variants, wide range of attachment options

Technical specifications

• Operating weight: 16,400 - 18,700 kg
• Engine output (ISO 9249): 115 kW / 156 HP
• Engine output (SAE J1349): 115 kW / 154 hp
• Emission stage: V
• Backhoe bucket capacity: 0.17 - 1.05 m³
• Grab capacity: 0.17 - 0.80 m³
• Average consumption (per operating hour): 6.70 l/h
• Generation: 6
