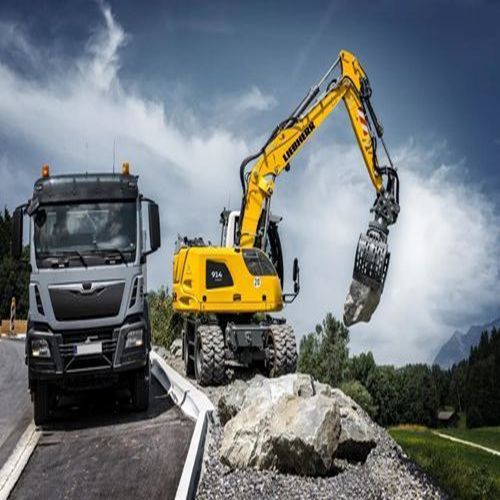

Wheeled excavator A 914 LITRONIC

short tail swingsmall turning radiuscompact

Overview
The A 914 Compact Litronic is a compact tail-swing mobile excavator designed for operations in confined urban and inner-city sites. It features an extremely small tail swing radius and a hydraulic system engineered for precise, high-performance control to maintain mobility and productivity in restricted manoeuvring conditions.

Key features

• Extremely small tail swing radius for confined spaces
• Powerful and precise hydraulic system
• High mobility and performance under difficult manoeuvring conditions
• Generation: 6
• Operating weight: 15,200 - 17,500 kg
• Engine output (ISO 9249): 105 kW / 143 HP
• Emission stage: V
• Tail radius: 1,750 mm
• Average consumption (per operating hour): 6.27 l/h
• Backhoe bucket capacity: 0.17 - 0.87 m³
• Grab capacity: 0.17 - 0.80 m³

Technical data
Operating weight: 15,200 - 17,500 kg
Engine output (ISO 9249): 105 kW / 143 HP
Engine output (SAE J1349): 105 kW / 141 HP
Emission stage: V
Tail radius: 1,750 mm
Backhoe bucket capacity: 0.17 - 0.87 m³
Grab capacity: 0.17 - 0.80 m³

Characteristics / technical specifications

• Operating weight: 15,200 - 17,500 kg
• Engine output (ISO 9249): 105 kW / 143 HP
• Engine output (SAE J1349): 105 kW / 141 HP
• Emission stage: V
• Tail radius: 1,750 mm
• Backhoe bucket capacity: 0.17 - 0.87 m³
• Grab capacity: 0.17 - 0.80 m³
• Average consumption: 6.27 l/h
• Generation: 6
