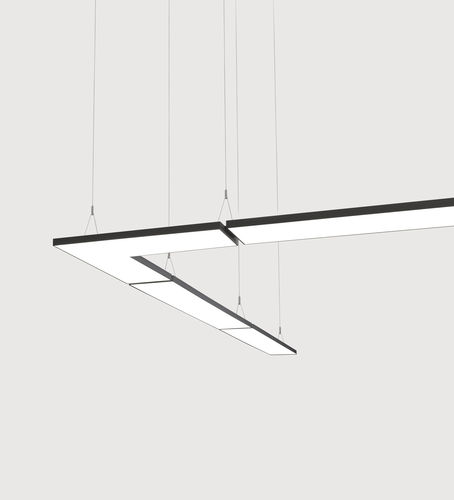

Hanging light fixture CUBIC EVOLUTION SYSTEM G4/P4LEDL-shapedIP20
Add to favorites
Compare this product
Characteristics
- Type
- hanging
- Light source
- LED
- Shape
- L-shaped
- Protection class
- IP20
- Application
- commercial
- Material
- anodized aluminum, aluminum profile, lacquered aluminum
- Color
- white, black, gray
- Style
- contemporary
- Dimmable
- dimmable
- Other characteristics
- DALI, modular, indirect
- Height
1,500 mm
(59 in)- Length
600 mm, 900 mm, 1,200 mm, 1,500 mm
(24 in, 35 in, 47 in, 59 in)- Power
22 W, 35 W
- Luminous flux
Min.: 2,360 lm
Max.: 4,070 lm
- Color temperature
Min.: 2,200 K
Max.: 6,500 K
- Color rendering index (CRI)
80 unit, 90 unit
Description
LED pendant light system. Direct-indirect or direct-only light distribution. Luminaire body with minimalistic overall height made of aluminium profile. Surface natural anodised or white, graphite, black or champagne coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Intelligent system consisting of linear modules,corner modules, connectors, cord suspensions (Suspension) and set ceiling rose including power supply (Canopy + Power Supply) for continuous light bands and customised lighting configurations. On request: Integration of emergency lighting components, sensor technology.
