LED track light BENCH C1

rectangularaluminumaluminum profile

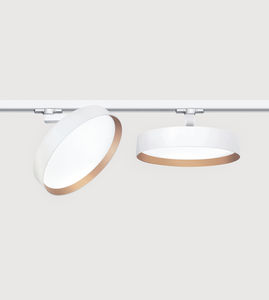

The Bench C1 is an LED downlight designed for 3-phase track systems, providing precise, direct lighting with optimized glare control for office and commercial installations. It combines a 345° adjustable luminaire head, an aluminium profile body and an integrated driver in the track adapter. Multiple finishes, reflector colours, lengths and control options are available for specification and integration into architectural projects.

Available finishes / Product adjustments

• Snow White | Anodic Black
• Urban Graphite | Ivory White
• Satin Silver | Anodic Black
• Anodic Black | Anodic Black
• Anodic Black | Satin Gold
• Urban Graphite | Satin Copper

Surface collections & sample surface finishes

• Sustainability Plus Collection: Snow White, Radiant Silver, Jet Black, Natural Anodised
• Deep Matte Collection: Ivory White, Anodic Silver, Stone Grey, Urban Graphite, Anodic Bronze, Matte Terra, Medium Brass, Anodic Champagne
• Satin Collection: Satin Silver, Satin Taupe, Satin Cloud, Satin Gold, Satin Pale Gold, Satin Ivy Green, Satin Copper, Satin Cipria, Satin Bronze

Optical & electrical options

• 345° rotation of the luminaire head
• Luminaire body made of aluminium profile
• Recessed louvre grids (Lens Louvre) for optimized glare control — suitable for office use
• Driver integrated into the track adapter (In-Track Electronic); available switchable or continuously dimmable (DALI)
• Optical system: Lens Louvre (direct light distribution)
• Colour temperatures available: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K
• Binning: ≤ MacAdam 3
• Colour rendering options: CRI >80, CRI >90, or Full Spectrum

Example catalogue variants (from product configuration table)

• Article EC1LWE-840M-L605-WG — Bench-C1 — L = 605 mm — Lens Louvre — Surface: Snow White — CCT: 4000K — Control: Switchable — Adaptor: White (In-Track Electronic) — Reflector: Satin Gold — Flux: 4620 lm — Power: 38 W
• Article EC1LWE-840M-B455-WG — Bench-C1 — L = 455 mm — Lens Louvre — Snow White — 4000K — Switchable — White adaptor — Reflector: Satin Gold — 2310 lm — 19 W
• Article EC1LWL-840M-B455-WG — Bench-C1 — L = 455 mm — Lens Louvre — Snow White — 4000K — Dimmable (DALI) — White adaptor — Reflector: Satin Gold — 2310 lm — 19 W
• Article EC1LSE-840M-L155-WA — Bench-C1 — L = 155 mm — Lens Louvre — Radiant Silver — 4000K — Switchable — White adaptor — Reflector: Satin Silver — 1160 lm — 9 W
• Article EC1LWE-840M-L305-WW — Bench-C1 — L = 305 mm — Lens Louvre — Snow White — 4000K — Switchable — White adaptor — Reflector: Snow White — 2310 lm — 19 W

Characteristics / technical specifications

• Rotation: 345°
• Material: aluminium profile (luminaire body)
• Outer housing and inner decor: multiple finishes and combinations (Snow White, Radiant Silver, Jet Black, Anodic Black, Satin Gold, Satin Copper, etc.)
• Glare control: recessed louvre grids optimized for office use
• Driver: integrated into track adapter — switchable or DALI dimmable
• Colour temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K
• Binning: ≤ MacAdam 3
• Colour rendering: CRI >80, CRI >90, or Full Spectrum
• Available lengths (examples): L = 155 mm, 305 mm, 455 mm, 605 mm
• Optical system: Lens Louvre (direct distribution)
• Adaptor options: White adaptor (In-Track Electronic), Black adaptor (In-Track Electronic)
• Reflector interior colours: Satin Gold, Satin Silver, Snow White
