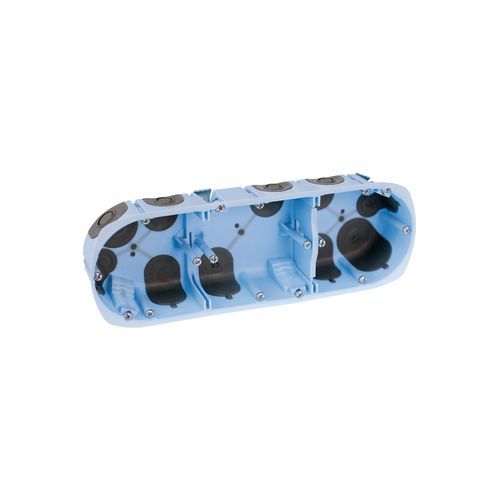

Electrical installation flush-mounted box 52066

Description
The XL Air’métic Ø67 mm back box provides airtightness for electrical fittings while limiting heat loss, ideal for BBC, RT2012 and RE2020 homes. The 3-gang XL Air’métic 40 mm deep back box is designed for installing three fittings side by side while ensuring optimum airtightness. Thanks to its high-performance sealing membranes, it limits heat loss and contributes to the compliance of installations in homes meeting BBC, RT2012 and RE2020 requirements. With its standard 71 mm fixing centres, it accepts horizontal or vertical mounting, making it easy to fit into any wall configuration.

Product highlights

• Enhanced airtightness for BBC / RE2020 homes
• Horizontal or vertical mounting
• High-performance flexible membranes
• Compatible with ICTA D16, D20 and D25 conduit
• Quick installation in plasterboard

Installation & compatibility

• Mounting type: dry partition wall
• Compatible with ICTA D16 / D20 / D25 conduit

Pair it with
All types of mechanisms

What's in the box
One airtight 3-gang back box

Technical specifications

• Manufacturer: Eurhom
• Reference: 52066
• Type: Triple XL Air’métic back box
• Certification: NF EN 60670-1
• IP rating: IP40
• Depth: 40mm
• Material: Plastic
• Diameter: 67mm
• Glow-wire resistance: 850°C
• Categories: Accessories
• Function: Back box
