Electrical installation flush-mounted box 52064

Description
The XL Air'métic Ø67 mm back box provides airtightness for electrical fittings while limiting heat loss, ideal for BBC, RT2012 and RE2020 homes.

Overview

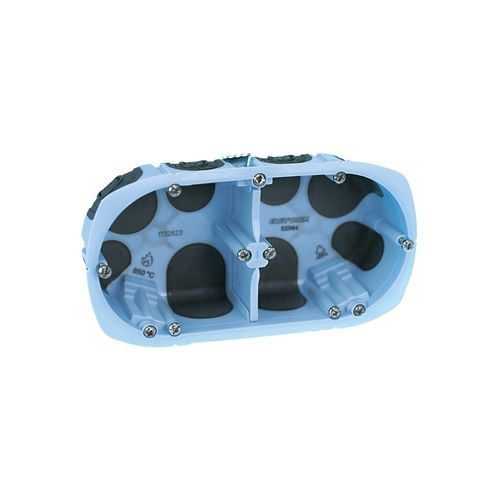

The Air'métic XL double back box, Ø67 mm and 40 mm deep, is designed for installing two fittings side by side while ensuring optimal airtightness. Thanks to its high-performance sealing membranes, it limits heat loss and contributes to the compliance of installations in homes meeting BBC, RT2012 and RE2020 requirements. With its standard 71 mm fixing centres, it accepts horizontal or vertical mounting, making it easy to fit into any wall configuration.

Product highlights

• Enhanced airtightness for BBC / RE2020 homes
• Horizontal or vertical mounting
• High-performance flexible membranes
• Compatible with ICTA D16, D20 and D25 conduit
• Quick installation in plasterboard

Installation & compatibility

• Mounting type: dry partition wall (plasterboard)
• Compatible with ICTA D16 / D20 / D25 conduit

What’s in the box
One sealed 2-gang back box

Caractéristiques / spécifications techniques

• Manufacturer: Eurhom
• Reference: 52064
• Type: Double XL Air'metic back box
• Certification: NF EN 60670-1
• IP rating: IP40
• Depth: 40mm
• Material: Plastic
• Diameter: 67mm
• Glow-wire resistance: 850°C
• Categories: Accessories
• Function: Back box
