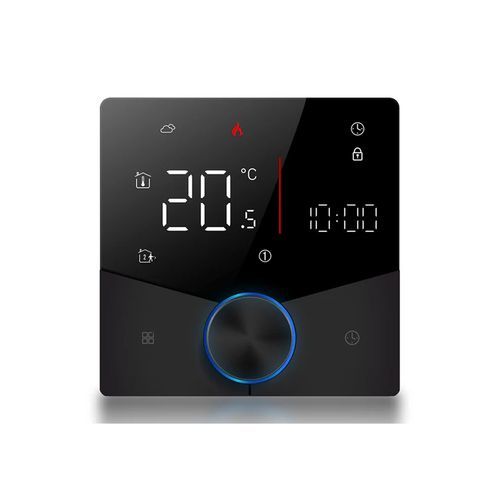

Digital thermostat BS-QGB-12

electronicsmartprogrammable

Description
This thermostat is designed for electric heating systems with direct power control. It supports an internal ambient sensor or an optional NTC 10K floor probe for precise underfloor temperature regulation. Matter compatibility enables straightforward integration into multi-brand smart home ecosystems. Compatible only with the corresponding heating type.

Product highlights

• Compatible with radiators and electric underfloor heating
• Rated up to 16A
• Connectivity: Wi-Fi + Matter; compatible with Smart Life, Apple Home, Alexa, Google Home
• Advanced weekly programming (7 days / 6 periods)
• Dial and touch interface
• Optional floor probe (NTC 10K)
• Modern ultra-slim tempered glass front

Installation & compatibility

• Fits round or square back boxes ≥ 40 mm
• For standard single-phase electrical installations
• Live and neutral connection required

Pair it with
Remote temperature sensor if required

What’s in the box

• Thermostat
• Installation guide

Caractéristiques / spécifications techniques

• Reference: BS-QGB-12
• Type: Electric heating thermostat
• Power consumption: ≤1.5W
• Power supply: 95–240V AC or 24V AC/DC
• Programming: 7 days / 6 periods
• Connectivity: Wi-Fi + Matter
• IP rating: IP20
• Material: Tempered glass
• Category: Smart home
• Heating application: Electric radiators & underfloor heating
• Interface: Dial + touch
• Floor probe: optional (NTC 10K)
• Compatible ecosystems: Matter, Smart Life, Apple Home, Alexa, Google Home
• Installation requirement: round or square back box ≥ 40 mm; live/neutral connection
