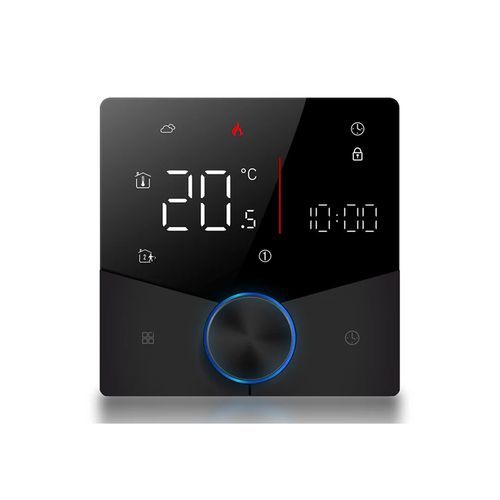

Digital thermostat BS-QGC-12

electronicprogrammablesmart

Description
Smart, functional control for boilers. This connected thermostat provides precise regulation of central heating for gas or oil boilers and integrates with major smart home ecosystems via Matter and Wi‑Fi.

Details
The Touch-range thermostat controls central heating systems (gas or oil boilers) via a volt-free contact. The modern design combines a frameless acrylic front and a central dial with touch controls to deliver an intuitive user interface. Matter compatibility allows integration with Apple Home, Alexa and Google Home. Advanced weekly programming is available: 7 days with 6 time slots per day. Compatible only with the corresponding heating type.

Product highlights

• Compatible with gas and oil boilers (volt-free contact)
• Connectivity: Wi‑Fi + Matter; compatible with Smart Life, Apple Home, Alexa, Google Home
• Weekly programming: 7 days / 6 periods per day
• Central dial and touch controls
• Backlit LED display
• Ultra-slim design with a frameless acrylic front
• Memory retention in the event of a power cut

Installation & compatibility

• Compatible with round or square back boxes ≥ 40 mm
• For use on a standard electrical installation
• Live / neutral connection (L / N)

Pair it with
Remote temperature sensor if required

What's in the box

• Thermostat
• Installation guide

Technical specifications

• Reference: BS-QGC-12
• Type: Boiler thermostat
• Power consumption: ≤1.5W
• Power supply: 95–240V AC or 24V AC/DC
• Programming: 7 days / 6 periods
• Connectivity: Wi‑Fi + Matter
• IP rating: IP20
• Material: Tempered glass
• Categories: Smart home
• Heating application: Boiler
