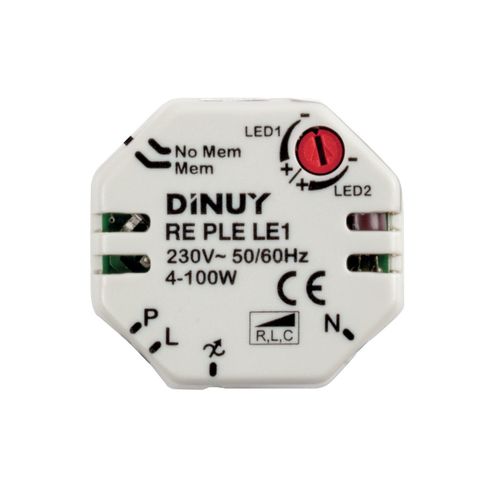

Home automation system dimmer RE PLE LE1

Dimmer specially designed for dimmable LED lamps. Compatible with: - LED1: 230V~ dimmable LED lamps (leading edge). - LED2: 230V~ dimmable LED lamps (trailing edge). 12V~ dimmable LED lamps (with trailing edge electronic transformer, type C). Very small dimmer, only 12mm thickness, to be installed into standard mechanism (behind the push-button) or junction box. Leading (LED1) or trailing (LED2) edge dimming, depending on the position of the selector switch. It is very important to select correctly the type of the connected load in order to avoid the damage of the dimmer or the lamps. Protected against overloads and shortcircuits. Built-in over-temperature protection, which will decrease the light level in the event of a high temperature on the dimmer. Push-button control, with or without Memory. It has a control knob (%) which permits to select the minimum lighting level. It avoids undesirable effects (e.g.: blinks) when the lamps are dimmed at low level.
