Pellet boiler stove ORION 16

contemporarycast ironventilated

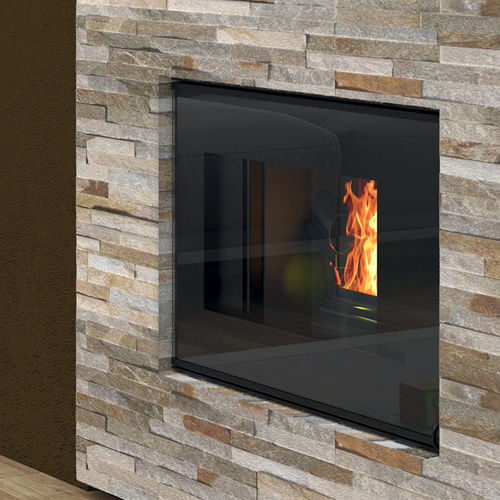

Orion, the innovative and exclusive water heating ventilated “lining module” by LInea VZ. The only built-in fireplace that can be customised. Indeed, the front panel can be finished with materials chosen to suit individual tastes. Exceptional power, performance and respect for the environment in a depth of just 30 cm. Customisable installation module, maximum depth just 30 cm. TECHNICAL SPECIFICATIONS Global heat output 15,95 Nominal heat output 14,74 kw Heat transferred to the water 12,29 kw Efficiency up to 94,87 % Maximum heated space 350 m3 Hopper capacity 28 Kg Pellet consumption 1,5 - 3,5 Kg/h Max. operating time 30 h Flue size ø 80 mm Air intake size ø 40 mm Power consumption 50/350 watt Stove dimensions L 110 x P 30 x H 120 cm Packaging dimensions L 120 x P 60 x H 120 cm
