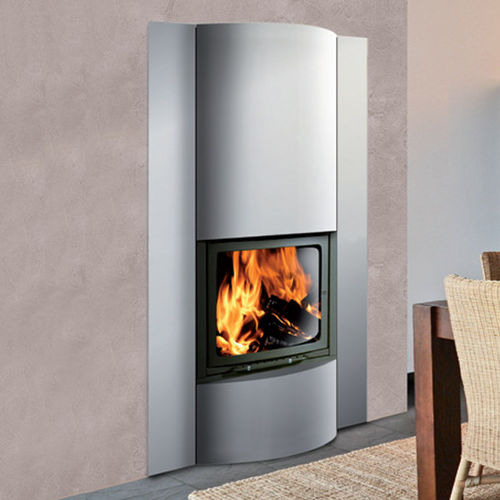

Closed wood hearth GIOVE

1-sidedstainless steelglass

CURVO 60 firebox+ Lining Satin-finish stainless steel lining complete with 3 mm thick COR-TEN steel curved firebox. Fitted with adjustable feet, refractory combustion chamber, can be installed in corners or on the wall. Curved ceramic glass door resistant to 800°C with slide-up opening and swing opening for cleaning the glass. Complete with 800 m3/h forced ventilation kit. TECHNICAL FEATURES The firebox is supplied complete with: 1 x 800 m3/h fan - 2 white adjustable air outlets with damper and ø 140 mm fitting - 1 control unit with speed controller - 3 x ø 140 mm pipes, 1.5 m long - 7 pipe clamps - 1 white indoor air intake without damper, with ø 140 mm fitting Flue specifications: inside diameter ø 20, ø 25 height 3 - 6 m TECHNICAL SPECIFICATIONS Nominal heat output Kw 10,0 Overall efficiency 77,50% Optimal wood consumption Kg/H 3 Fan mc/h 800 Fan power Watt 125 Noise Dba 59 Max. heated space mc. 250 Flue gas outlet Ø mm 200 Outdoor air intake Ø mm 140 Indoor air intake Ø mm 140 Weight kg 160 Combustion chamber dimensions cm 50x33
