Refractory

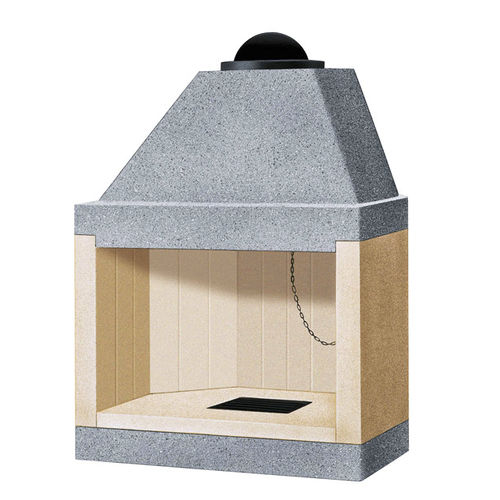

Hood and floor made from concrete with expanded clay aggregate, combustion chamber made from high-alumina refractory material. Fitted with chain-operated flue gas register and ash dump with cast-iron grate. Can be installed in corners or on the wall; suitable for cooking food. Available on request with “VZ RC system” forced ventilation kit.
TECHNICAL SPECIFICATIONS
Heated space
mc 65/70
Outdoor air intake
cm 20 Ø
Weight
Kg 550
Flue gas register
cm 30 Ø
Useful cross-section
cm 25 Ø, 30 Ø
Chimney height
cm oltre 600, da 300 a 600
