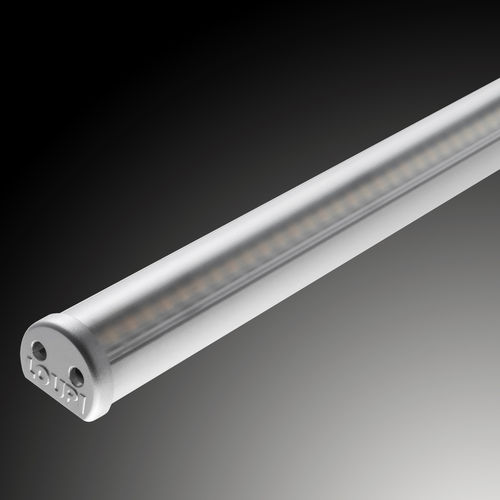

The Line KS2740 is a linear strip of 20 cm (max power 7.2W) consisting of two networks of Mini TOPLED intertwined. A veritable line of light, the Line KS2740 can mix different color temperatures. The emitted light is thus adjustable and harmonious thanks to the mastery of this subtle mixture. This LED linear fits easily in a small space with low clearances, emits little heat, and has no electromagnetic pollution. The color temperature is adjustable within a range defined by the color temperatures of the LEDs installed , 2700K to 4000K. Integrated into an aluminum profile, linear LED arrays can be made (from a base module of 20 cm) into custom lengths.
OPTICAL
MINITOPLED 3015
Luminous Flux : from 1400 to 3200 lumens per meter (2 canals maximum).
Lenticular filter for profile. Transmission > 90%.
Color Temperature: from 2700 K to 4000 K.
Service Range: 70% of nominal flux after 20000 hours.
Beam Angle : 115°.
Color Rendering Index : CRI 85
ELECTRICAL
Supply Line KS2740 : 24 V, tolerance +/- 3%.
LED Supply : integrated current regulators, tolerance +/- 10%.
Configuration : 2 interlaced TOP LED canals.
Supply Connectors: 3 wire—common anode, cathode circuit 1, cathode circuit 2--Wire outlet section 0,5mm² , AWG20, 200cm, polarised, pre-stripped.
Power Output : 2 * 18W per canal and per meter.
Electrical Classification : Class III SELV device.
