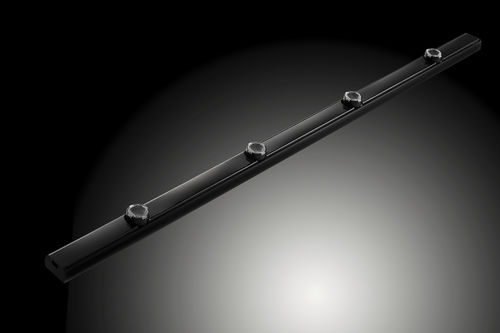

The Line Micro C is a fixed linear LED equipped with accent lenses. Each lens is equipped with a powerful électroluminescent diode (LED) allowing an unmatched performance of both light density and quality. This combination of excellent performance, optical miniaturization, and discreet design allows the Line Micro C to inegrate easily into showcases, display furniture, and other small spaces. Integrated into the aluminum profile base, the dimensions can be made in custom lengths, from a basic module of 7.5 cm to a maximum of 210cm.
OPTICAL
PMMA acrylic lens, efficiency ~90 %.
Luminous flux according to Bining : from 120 to 150 lumens to 500 mA.
Color Temperature: 2700 K to 5000 K.
Service Range : 70 % of nominal flux after 25 000 hours.
Color Rendering Index: CRI 90
ELECTRICAL
Constant voltage for fixed LINE MICRO C : 24 Volts
LED constant voltage : 24V, LED tolérance +/- 3%
Supply connection : polarised output wires.
Electrical load 33 W/ m maximum
Electrical Classification : Class III SELV device.
MECHANICAL
Operating temeperature : - 5° + 40°.
Support type: Fixed or Articulable (for a total angle of 60°).
Aluminum profile including end caps (2 mm thick) and fastening clips (fixed version).
ROHS Components.
Interior Use Only.
