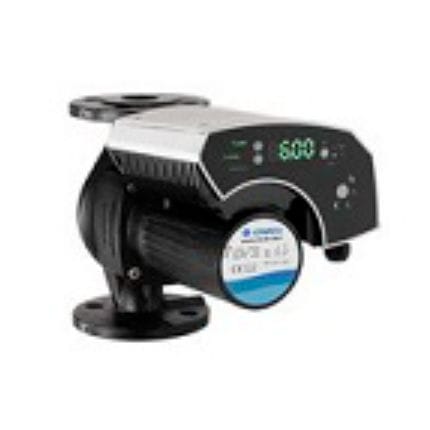

Water pump ECOCIRC XL series

electriccast ironcirculation

Series
ecocirc XL

Table of product variants

• ecocirc XL 100-120 F PN 10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 10; Construction Material: Cast Iron
• ecocirc XL 100-120 F PN 6 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6; Construction Material: Cast Iron
• ecocirc XL 25-100 PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron
• ecocirc XL 25-40 PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron
• ecocirc XL 25-60 PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron
• ecocirc XL 25-80 PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron
• ecocirc XL 32-100 F PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron
• ecocirc XL 32-100 PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron
• ecocirc XL 32-120 F PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron
• ecocirc XL 32-40 PN 6/10 — Product version: Single; Communication Protocol: no communication protocol; PN: PN 6/10; Construction Material: Cast Iron

Document types available for each variant

• 2D (.dxf) downloads
• 2D (.wmf) dimension drawings
• 3D (.stp) downloads
• BIM (Revit) (.rfa) packages
• 2D and 3D previews (PNG, HTML/GZ)

Notes
The series includes multiple sizes, connection types (threaded, flanged) and materials (Cast Iron and Bronze). Each variant listing indicates product version (Single or Twin), communication protocol (commonly no communication protocol for listed items), PN rating (PN 6, PN 10 or PN 6/10) and construction material. Preview images and CAD/BIM downloads are provided per variant.

Technical specifications

• Series name: ecocirc XL
• Product versions: Single, Twin
• Communication Protocol: no communication protocol (many listed variants)
• PN ratings available: PN 6, PN 10, PN 6/10
• Construction materials: Cast Iron, Bronze
• Available deliverables per variant: 2D (.dxf), 2D dimension drawings (.wmf), 3D (.stp), BIM (.rfa), PNG previews, 3D previews
