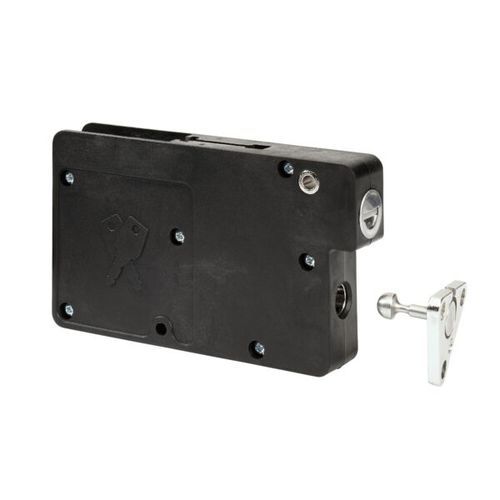

Electronic lock 3777/3778

for lockersproximity cardremote-controlled

Introducing the new water resistant 3777 (5V) and 3778 (12V) e-latches. Designed and manufactured in the UK to exacting standards, the electronics within each latch are rated to IP65, with mechanical components coated to resist corrosion. LOCK DESCRIPTION These water resistant latches incorporate the same key features as the 3792 and 3793 variants including key and mechanical cable overrides, a floating door bolt to accommodate mis-alignment, and a precision motor driven mechanism with excellent operation even under load. Designed for easy connection and control, the latches include an internal sensor for feedback on whether the door is closed. They have a push-to-lock action and on opening will push the door slightly ajar. If greater movement is required, a spring-loaded plunger is available as a replacement for the key override barrel. The latches are also supplied with a door mounted striker bolt (customer to specify flush fit or 2mm stand-off) and come with a 2, 4 or 6 metre cable (customer to specify)​. Rigorously tested for durability and reliability, these latches are compatible with our Zodiac Smart Locking System and are ideal for use on a wide variety of smart lock applications such as personal lockers, postal and delivery systems, asset management systems and other enclosures. STANDARD FEATURES Rugged cast alloy construction with a reinforced black plastic casing All cables have silicone boot and retaining band one end with male connector the other. Compact size (70 high x 120 long x 20 thick) Two, Ø4 attachment holes Plug-in connection Easy connectivity Optional mechanical cable over-ride Mechanical 10-disc key over-ride (1 key per 50 locks)
