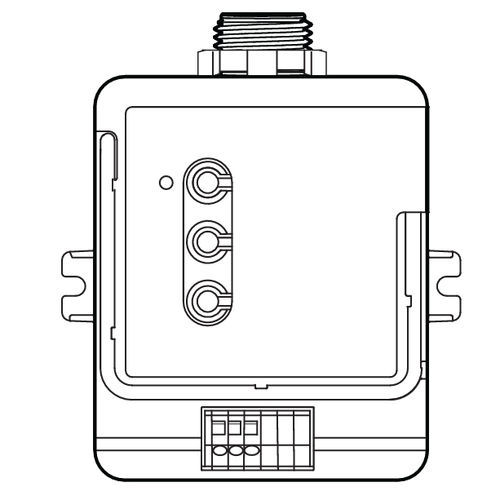

Brightness sensor RMJS-DT-DV

capacitiveindoorsurface-mounted

The PowPak wired daylight transmitter accepts input from a wired daylight sensor and sends Lutron Clear Connect commands — functioning like a Radio Powr Savr daylight sensor. When paired with the wired daylight sensor EC‑DIR‑WH, it can replace a Radio Powr Savr to automatically control compatible dimming and switching devices via RF communication. Features • Compatible with the following systems: — Vive — Athena — QS standalone • Battery-free solution • The daylight transmitter (RMJS‑DT‑DV) receives input from and provides power to one wired daylight sensor (EC‑DIR‑WH).1 • Daylight compensation through Lutron reliable partial open loop control. • Designed to give linear response to changes in viewed light level. • Uses Clear Connect technology. • Available in a package that includes model number EC‑DIR‑WH: RMJS‑DT‑DV‑PKG Regulatory Approvals • cULus 508 listed • FCC certified. Complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules • Complies with requirements for use in other spaces used for environmental air (plenums) per NEC® 2014 300.22(C)(3) • IC certified Power • Operating voltage: 120 / 277 V~ 60 Hz • Typical Power: 0.55 W Output Ratings • IEC SELV/NEC® Class 2 • 24 V- 110 mA • Powers one EC‑DIR‑WH sensor only Mounting • This device can be installed on a junction box or marshalling box using the conduit nut or with mounting screws. • The device must NOT be mounted inside a metallic enclosure – only on the exterior of a junction box or marshalling box. Improper installation can result in degraded wireless communications and intermittent or sustained communications failures and will not be covered under warranty.
