Motion detector LOS C SERIES

motion detector
motion detector
motion detector
motion detector
motion detector
motion detector
motion detector
Add to favorites
Compare this product


motion, presence
Other characteristics
PIR, passive, ultrasonic, dual-technology

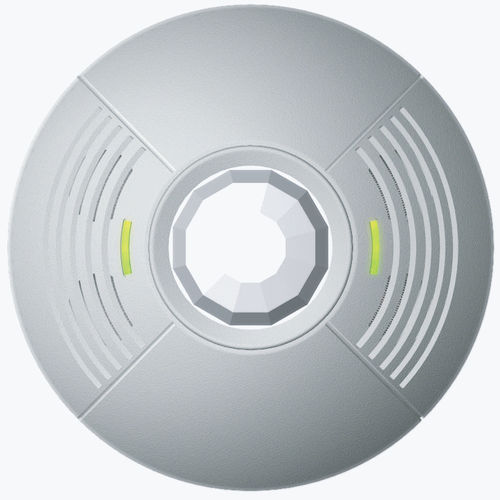

The LOS C Series ceiling mount occupancy sensors offer a wide range of technologies, and can either integrate into Lutron systems (no power pack needed) or function as a stand-alone control using a Lutron power pack. The ultrasonic sensors (US) have excellent minor motion detection and the passive infrared (PIR) sensors are better suited for major motion. The dual-technology versions combine both features to provide optimal energy savings and occupancy detection. The LOS ceiling mount sensors all have self-adaptive technology that eliminates the need for manual adjustments. After correct mounting, the sensors automatically adjust sensitivity and timing to prevent false-off and false-on conditions. Model with an additional dry contact closure are available. These models can control other building systems such as HVAC or security systems. Self-adaptive sensors automatically adjust sensitivity and timing Passive infrared (PIR), ultrasonic (US) or dual technology (DT) Range from 450–2,000 ft² (132–610 m) (mounted on an 8–12 ft (2.4–3.7 m) ceiling ) 8-second test mode to easily confirm proper operation Model with additional output (dry contact closure) available Non-volatile memory (saved changes are stored during loss of power) 20-24 VDC, class 2 (PELV) low-voltage wiring


No catalogs are available for this product.

See all of LUTRON ELECTRONICS‘s catalogs
