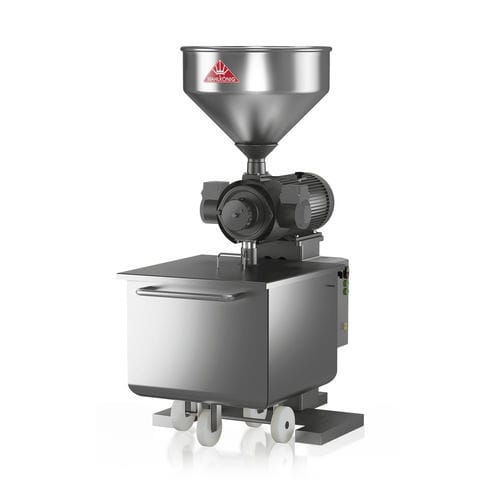

Automatic grinder DK 27

commercial

The DK27 levels up the capacities of your premium pre-ground coffee production to 230 kg to 300 kg per hour and is suitable for continuous operation, as for example in automated productions lines. Outstanding even grinding quality Wear-resistant premium burrs Very powerful three-phase motors with surface cooling and high starting torque - suitable for continuous operation Service-free, constantly greased bearings Two additional fans to cool the motor Ground material container (capacity 200 l) Voltage // frequencies // phases: 380-415 V // 50/60 Hz // 3~ 208-220 V // 50/60 Hz // 3~ Idle speed: 980 rpm (50 Hz); 1160 rpm (60 Hz) Burr diameter: 180 mm Burr material: Fully hardened special steel (DK27 LVS, DK27 LVST) Fully hardened special cast steel (DK27 LV, DK27 LVT) Tungsten Carbide (DK27 LVHT, DK27 LVH) Grinding capacity - fine* kg/h (approx.): 230 (DK27 LV) 260 (DK27 LVH) 280 (DG27 LVS) Grinding capacity - medium* kg/h (approx.): 250 (DK27 LV) 280 (DK27 LVH) 300 (DK27 LVS) Grinding capacity - turkish* kg/h (approx.): 170 (DK27 LVT) 180 (DK27 LVST) 220 (DK27 LVHT) Bean hopper capacity: approx. 30 kg Max. nominal power: 5500 W Dimensions (w x h x d): 79 x 160 x 123 cm (incl. base) 69 x 70 x 79 cm l 200 l (container) Dimensions of packing (w x h x d): Depends on individual version and equipment Net weight: 155 kg (incl. base) (DK27 LV, DK27 LVS, DK27 LVT, DK27 LVST) 158 kg (incl. base) (DK27 LVH, DK27 LVHT) Gross weight: Depends on individual version and equipment Standard colors: Textured, reddish grey
