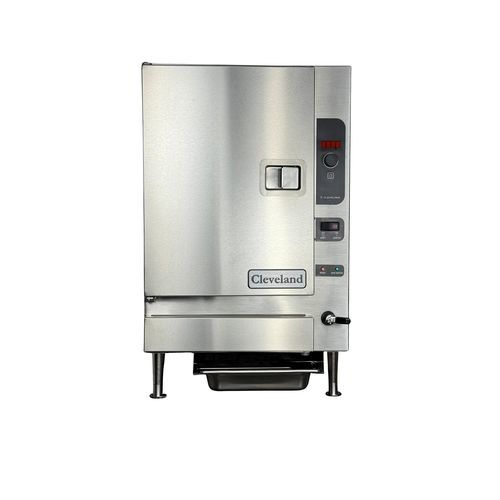

Commercial kitchen combi steamer 22CCGT6

gasconvectionfree-standing

Overview
SteamChef™ 6, model 22CCGT6 connectionless (manual water fill and drain) boilerless convection steamer. Holds up to six full-size steam table pans (2.5" deep). Patented KleanShield™ clean cavity protection with manual bypass tray. easyTimer™ controls with SureCook load-compensating timer. Standpipe safety overflow drain prevents water overflow from the cooking compartment. Heavy-gauge stainless steel construction with exclusive self-adjusting two-piece compartment door and reversible door gasket. 5" skid-resistant adjustable legs.

Key Features
Capacity

• 6 × 2.5" × 12" × 20" steam table pans (full size)
• 4 × 4" × 12" × 20" steam table pans
• 3 × 6" × 12" × 20" steam table pans

Manual Water Fill and Drain
No fixed water or drain connections required; manual fill and manual drain operation.

Drain Pan
2.5" deep solid drain pan for manual draining (required for proper steamer operation).

Fan Forced Convection Steam
Exclusive baffle system ensures even steam circulation throughout the compartment.

Large Water Reservoir
2.5 gallon water reservoir for extended operation between fills.

KleanShield™
Patented KleanShield™ contamination protection reduces flavor transfer and foaming in the reservoir.

Manual Bypass Plate
Allows bypass of KleanShield™ when required for specific applications.

Standpipe Safety Overflow Drain
Prevents water overflow from the cooking compartment for added safety.

easyTimer™
99-minute digital readout (minutes and seconds); selector dial with LED descale indicator; SureCook load-compensating timer; manual constant steam mode.

Exclusive Self-Adjusting Door
Two-piece compartment door with free-floating inner door and reversible door gasket to extend gasket life up to four times.

Construction & Mounting
Heavy-gauge stainless steel; left-hand door hinging (controls on right); 5" skid-resistant adjustable legs; stand or countertop mounting; 120 V, 1 phase electrical.

Additional information
W × D × H – 21 31/50" × 30 19/100" × 31 13/20"; Power Input Type – Gas – Natural; Primary Power Input – 115–120 V × 60 Hz × 1 PH; Accessories – 34" and 25" high equipment stands (Unistand25), pull-out shelf for Unistands, pan rack kit for Unistands, 5 ft cord and plug, 480 V option, single phase option.

Technical Specifications

• Model: SteamChef™ 6 (22CCGT6)
• Capacity: up to six 2.5" full-size steam table pans (various pan depth configurations supported)
• Connectionless operation: manual water fill and manual drain (no fixed water/drain connections required)
• Drain pan: 2.5" deep solid drain pan for manual drain
• Steam system: fan-forced convection steam with exclusive baffle system for even steam circulation
• Water reservoir: 2.5 gallon reservoir with KleanShield™ contamination protection
• Controls: easyTimer™ 99-minute digital readout (minutes and seconds), LED descale indicator, SureCook load-compensating timer and manual constant steam mode
• Safety: standpipe safety overflow drain; high temperature safety shut-off with reset button
• Door: exclusive self-adjusting two-piece door with free-floating inner door and reversible gasket to extend gasket life
• Construction: heavy-gauge stainless steel
• Hinging & controls: left-hand door hinging; controls on the right
• Electrical: 120 V, 1 Phase (primary power input 115–120 V × 60 Hz × 1 PH)
• Mounting: stand or countertop mounted; 5" skid-resistant adjustable legs
• Dimensions (W × D × H): 21 31/50" × 30 19/100" × 31 13/20"
