Commercial kitchen combi steamer 22CET6.2

electricconvectionfree-standing

Overview

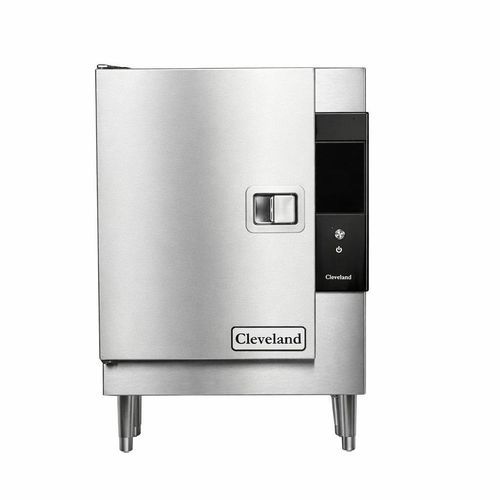

Cleveland SteamChef™ Booster 6.2, model 22CET6.2, is a high-speed electric boilerless convection steamer with easyTouch controls. Designed for production kitchens, it features a 12 kW heating system in aluminum-encased elements, an open 1.0 gallon reservoir for easy access, and capacity for six full-size 2.5\" steam table pans. Energy Star approved and equipped for low-temperature steam, rethermalization/holding and multi-step cooking.

Features

• Capacity: Six full-size 12" x 20" x 2.5" steam table pans (1/1 GN, 65 mm).
• Design: Boilerless counter-type convection steamer with bottom-located open 1.0 gallon reservoir for simplified maintenance and service access.
• KleanShield™: Patented fan-forced convection system that channels condensate away from the cooking compartment to prevent contamination of reservoir water and reduce foaming and residue.
• 5" easyTouch Control: 5" touch UI with press & go recipes, cookbook storage, ±1°F cooking accuracy, multi-step timers, low-temperature steam and holding modes, self-diagnostics and maintenance notifications.
• Water & safety controls: Automatic fill with Low/High water probes, overflow standpipe, 180° standby temperature, high-temperature safety shut-off and steam/fan shut-off when door opens.
• Drain system: Automatic SteamChef drain with 1/2" ball valve and micro-switch; requires 1" NPT drain connection. Includes cold water condenser and 3-minute rinse for water savings.
• Door & construction: Left-hand compartment door standard (controls right). Two-piece free-floating inner door and reversible gasket to prevent leaks. 14-gauge stainless steel compartment door and latch.
• Legs & mounting: 4" (102 mm) skid-resistant adjustable legs with flanged feet.
• Heating elements: 12 kW electric elements encased in solid aluminum blocks for rapid, efficient heat transfer; elements are not immersed in water so deliming is not required.

Technical specifications

• Model: 22CET6.2
• Dimensions W x D x H: 21 5/8" x 34 7/8" x 30.75"
• Power input: Electric
• Heating power: 12 kW elements (listed output 13.5 N/A)
• Cooking capacity: Six 12" x 20" x 2.5" full-size steam table pans
• Reservoir: Open 1.0 gallon water reservoir at bottom of cooking compartment
• Water controls: Automatic fill; Low & High water probes; safety overflow standpipe
• Drain connection: 1" NPT required; automatic drain control with 1/2" ball valve and micro-switch; cold water condenser and 3-minute rinse feature
• Door hinging/options: Standard left-hand door; reversible gasket; two-piece free-floating inner door. Optional right-hand door hinging and control-side variants available.
• Accessories: Connection Kit (5 ft FDA-approved NHT water hose), Single Point Water Connection (SPW), 34" stainless stand (UniStand34), electrical/control options including single-phase operation and ON/OFF compartment control variants.
• Weight: 335 lb
• Approvals: Energy Star approved
