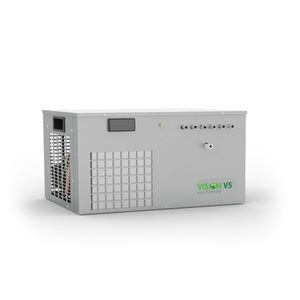

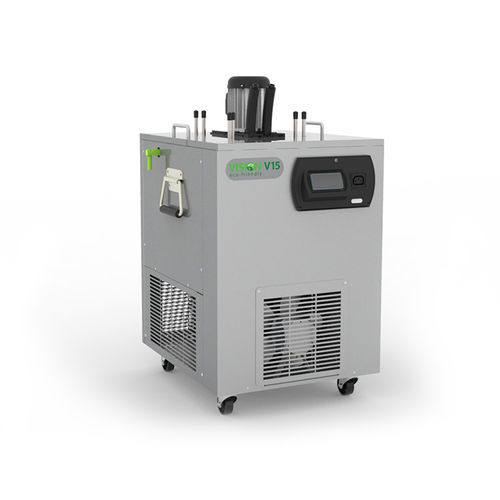

Commercial beverage cooler VISION V15 MINI

storagevertical

Summary
The Vision V15 Mini Remote Cooler is engineered for cellar environments and improves energy-efficient cooling and serviceability while enhancing overall unit performance.

Features

• Electronic ice bank control
• 18 m mounted pump
• Front-mounted condenser fan
• Improved IP-rated electrical enclosure
• Improved ice bank stability
• Increased tank insulation
• Telemetry electrical interface as standard
• Capacity to serve up to ten individual products

Design & Benefits
Designed to reduce whole-life costs, the unit provides easy access to components for maintenance and supports remote or integral configurations to suit installation needs.

Technical data / Performance
Ice bank pull down (remote): 3.5 hours @ 19°C ambient waterbath
Ice bank pull down (integral): 2 hours 45 mins @ 19°C ambient waterbath
Ice bank weight: 22 kg nominal (remote) / 11 kg nominal (integral)
Max. operating ambient temperature: 32°C
Waterbath capacity (integral): 28 litres
Dry weight (integral): 37.4 kg
Operating weight (integral): 65.4 kg

Electrical: Mains voltage: 220-240 V / 50 Hz (single phase) / Run current: 5 A / Fuse rating: 5 A

Refrigeration: Compressor size: 8.8 cc / Duty: 550 W/h @ -10°C evaporation / Refrigerant: R290 / Charge (integral): 105 g

Product coils: Plain lid — no coils; Coil lid — 4 × 6 m (316 stainless steel) (3/7" or 3/8" variants)

Specifications

• Model: Vision V15 Mini Remote Cooler
• Ice bank pull down (remote): 3.5 hours @ 19°C ambient waterbath
• Ice bank pull down (integral): 2 hours 45 mins @ 19°C ambient waterbath
• Ice bank weight: 22 kg nominal (remote) / 11 kg nominal (integral)
• Max. operating ambient temperature: 32°C
• Waterbath capacity (integral): 28 litres
• Dry weight (integral): 37.4 kg
• Operating weight (integral): 65.4 kg
• Mains voltage: 220-240 V / 50 Hz (single phase)
• Run current: 5 A
• Fuse rating: 5 A
• Compressor size: 8.8 cc
• Duty: 550 W/h @ -10°C evaporation
• Refrigerant: R290
• Refrigerant charge (integral): 105 g
• Product coil options: Plain lid — no coils; Coil lid — 4 × 6 m (316 stainless steel) (3/7" or 3/8" variants)
• Mounted pump length: 18 m
• Front-mounted condenser fan
• Improved IP-rated electrical enclosure
• Increased tank insulation
• Telemetry electrical interface (standard)
• Can cater for up to ten individual products
