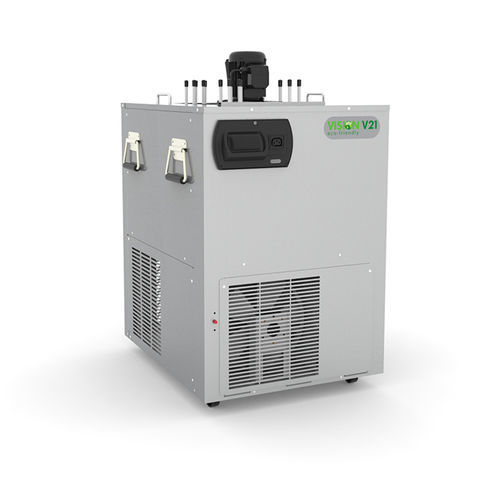

Beverage cooler for the food industry VISION V21for commercial kitchenfor barfor restaurant
Add to favorites
Compare this product
Characteristics
- Market
- for bar, for commercial kitchen, for the food industry, for restaurant
- Installation
- freestanding
- Options
- vertical
Description
Overview
The Vision V21 Remote Cooler is engineered for cellar environments to deliver compact, serviceable ice-bank cooling for multiple product lines while minimising whole-life costs. It provides front access to major components and supports up to 14 individual products.
Features
Versions
Available as integral (air-cooled) and water-cooled versions.
Technical Data
Physical dimensions (W x D x H): 54 cm x 66 cm x 90 cm
Weight: 67 kg (147.7 lb)
Power: 230 V, 50 Hz, single phase; Run current: 5 A; Power output: 4.6 A
Certifications: CE
Refrigeration (variant 1)
Compressor size: 15.28 cc
Duty: 820 W @ -10°C evaporation
Refrigerant: R290; Charge: 150 g (integral); 100 g (water-cooled)
Refrigeration (variant 2)
Compressor size: 8.8 cc
Duty: 689 W @ -10°C evaporation
Refrigerant: R290; Charge: 105 g (integral)
Product Coils
Performance
Ice bank pull-down @ 19°C ambient (waterbath, no python): 2 hours 45 minutes (integral only)
Ice bank weight: 11 kg nominal
Max operating ambient temperature: 32°C
Technical specifications
The Vision V21 Remote Cooler is engineered for cellar environments to deliver compact, serviceable ice-bank cooling for multiple product lines while minimising whole-life costs. It provides front access to major components and supports up to 14 individual products.
Features
- Front-mounted condenser fan
- Front-mounted glycol pump (water-cooled models)
- Improved IP-rated electrical enclosure
- Three removable service panels (front and both sides)
- Improved ice bank stability and increased tank insulation
- Overall improved performance
- Telemetry electrical interface as standard
Versions
Available as integral (air-cooled) and water-cooled versions.
Technical Data
Physical dimensions (W x D x H): 54 cm x 66 cm x 90 cm
Weight: 67 kg (147.7 lb)
Power: 230 V, 50 Hz, single phase; Run current: 5 A; Power output: 4.6 A
Certifications: CE
Refrigeration (variant 1)
Compressor size: 15.28 cc
Duty: 820 W @ -10°C evaporation
Refrigerant: R290; Charge: 150 g (integral); 100 g (water-cooled)
Refrigeration (variant 2)
Compressor size: 8.8 cc
Duty: 689 W @ -10°C evaporation
Refrigerant: R290; Charge: 105 g (integral)
Product Coils
- Plain lid: no coils
- Coil lid: 4x6 m 3/7" coils, 316 stainless steel
Performance
Ice bank pull-down @ 19°C ambient (waterbath, no python): 2 hours 45 minutes (integral only)
Ice bank weight: 11 kg nominal
Max operating ambient temperature: 32°C
Technical specifications
- Model: Vision V21 Remote Cooler
- Capacity: caters for up to 14 individual products
- Dimensions (W x D x H): 54 cm x 66 cm x 90 cm
- Weight: 67 kg (147.7 lb)
- Primary power: 230 V, 50 Hz, single phase
- Power output / Run current: 4.6 A / 5 A
- Electrical: 220–240 V / 50 Hz (single phase); Fuse rating: 5 A
- Refrigerant: R290 (multiple charge/variant options listed above)
- Ice bank weight: 11 kg nominal; Pull-down time: 2 h 45 min @ 19°C ambient (integral only)
- Available as integral (air-cooled) or water-cooled versions
