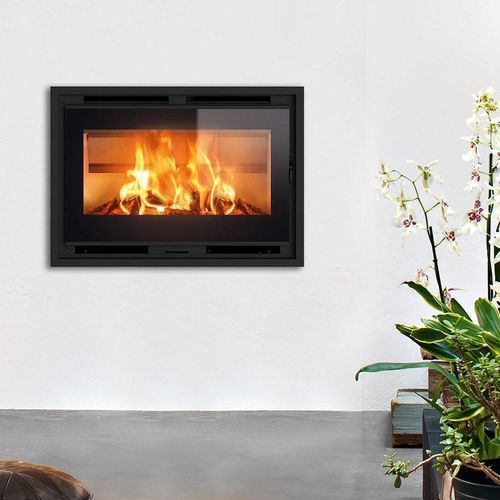

Wood-burning fireplace insert INBOX 70 WOOD

natural convectioncontemporaryClass A+

Description
Wood-burning fireplace insert with reduced height (49 cm) designed to replace existing fireplaces. Compact dimensions make it compatible with older and lower hearths, allowing quick, non-invasive installation without major masonry work. Operates by natural convection for very quiet operation and is prepared for an optional tangential fan kit to accelerate heat distribution and direct warm air through the front grille or upwards into the hood. Features a wide panoramic glass for an optimal view of the flame, an Alutec® self-cleaning firebox interior and an integrated log retainer for increased durability and user comfort.

Key features

• Reduced height: 49 cm for replacement of old fireplaces
• Natural convection operation; optional tangential fan kit to accelerate heat distribution and direct warm air via front grille or upwards
• Alutec® self-cleaning firebox (high-alumina patented refractory) for chemical self-cleaning and enhanced flame visibility
• Wide panoramic glass with calibrated cleaning air to keep glass transparent
• Integrated log retainer and capacious ash drawer
• 150 mm smoke outlet (200 mm for QBox 100)
• Door supplied with right-hand handle, reversible after installation

Cleaning and installation
Self-cleaning Alutec® refractory maintains a light colour at high temperatures, improving flame visibility and facilitating maintenance. Calibrated cleaning air and a large ash drawer reduce glass soiling and simplify cleaning. Standard flue outlet sizes simplify installation and ensure compatibility with many traditional fireplaces.

Technical data
Energy Efficiency Class (A++/G): A+
Seasonal space heating efficiency (ηs): 76%
Appliance type (tightness): BE
Dimensions (LxHxP): 70 x 49 x 43.8 cm
Nominal heat output: 8.6 kW
Minimum heat output: 5.0 kW
Efficiency at max: 85.3%
Efficiency at min: 85.0%
Hourly consumption at min: 1.30 kg/h
Hourly consumption at max: 2.20 kg/h
Heatable volume 20 W/m³: 430 m3
Heatable volume 35 W/m³: 246 m3
Heatable volume 55 W/m³: 156 m3
Smoke outlet: 150 mm
Net weight: 90.00 kg
Exhaust smoke temperature: 300 °C
Smoke mass flow: 6.0 g/s

Certifications & conformity

• Energy class A+
• Certified 5-star under the Aria Pulita emission and efficiency scheme
• Test standards: EN 14785, BImSchV 2nd stage, Regensburger/Aachener/Münchener BStV, Art 15a B-VG, LRV
• Compatible with EU Ecodesign Regulation 2022
• Undergoing Flamme Verte 7-star certification process

Characteristics / technical specifications

• Model: INBOX 70 WOOD
• Dimensions (LxHxP): 70 x 49 x 43.8 cm
• Nominal heat output: 8.6 kW
• Minimum heat output: 5.0 kW
• Seasonal space heating efficiency (ηs): 76%
• Efficiency at max: 85.3%
• Efficiency at min: 85.0%
• Hourly consumption at min: 1.30 kg/h
• Hourly consumption at max: 2.20 kg/h
• Heatable volumes: 430 m³ (20 W/m³), 246 m³ (35 W/m³), 156 m³ (55 W/m³)
• Smoke outlet: 150 mm (200 mm for QBox 100)
• Net weight: 90.00 kg
• Exhaust smoke temperature: 300 °C
• Smoke mass flow: 6.0 g/s
• Appliance type (tightness): BE
• Self-cleaning Alutec® refractory firebox
