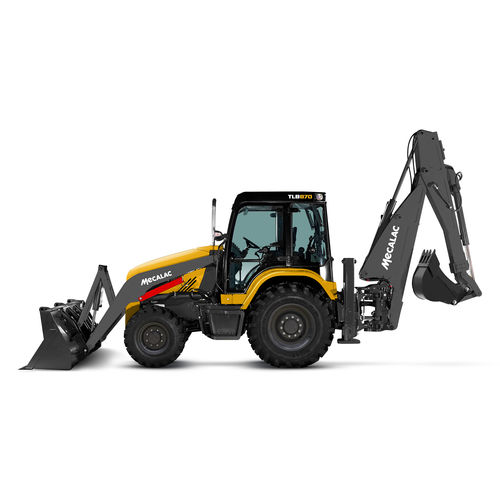

Ergonomic backhoe loader TLB870

frontmulti-function

The TLB870 backhoe loader is the ideal choice for your backhoe fleet requirements, the TLB870 is our entry-level backhoe loader and offers ease of use whether excavating, rehandling, transporting material or driving between sites. The 55kw (74hp) Stage IIIB (Tier 4 final) engine meets emissions regulations without the use of DPF's or AdBlue, For non compliant regions a 70kw Stage IIIA (Tier 3) engine, both engines offer smooth power delivery and efficient operation. An intelligent and efficient 'inloader' hydraulic system provides automatic control of the tandem gear pump to provide improvements in fuel efficiency and control. Best in class excavator dig depth, reach and dipper tear out create an incredibly capable machine. FEATURES Total operating weight (kg)7695 Overall width (mm)2310 Turning circle (mm)7960 Travel speed (km/h)39 Engine power (kW/hp)55 / 74 (Stage IIIB) Engine Power (kW/hp)70 / 94 (Stage IIIA) Hydraulic SystemOpen Centre Pump Flow (l/min)128 Tear-out force / Loader (daN)4600 Break-out force / Loader (daN)4200 Lift capacity @ Max Height (kg)3759 Lift height / Loader (mm)3509 Max. reach (mm)6995 Max. depth (mm)5744 Tear-out force / Excavator (daN)4220 Break-out force / Excavator (daN)6870
