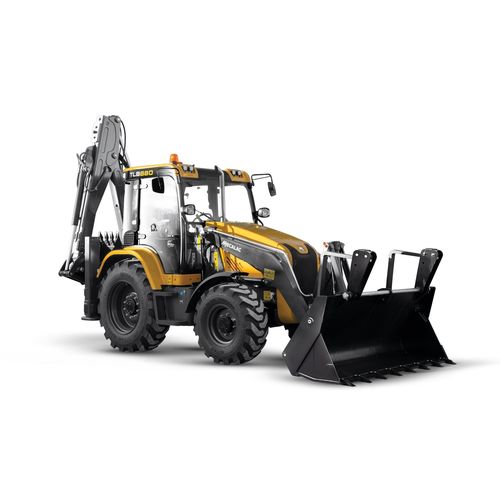

Ergonomic backhoe loader TLB880

Combining impressive power, efficiency and capability with heavy-duty design and exceptional build quality, the TLB880 is perfect for small companies and rental fleets alike looking for high performance and economical operation. Powered by a Stage V-compliant diesel engine, the TLB880 is a powerful machine delivering up to 100hp (74.5kW) to provide reliability, quiet operation and many hours of dependable power with economy. Paired with either a Synchro Shuttle transmission or a Servo Power Synchro (Powershift) transmission, the Mecalac TLB880 delivers excellent traction and speed up to 40Kph (24mph), making all operations smooth and productive. To ensure efficient multifunctional operations with straightforward maintenance, the TLB880 combines the Mecalac’s proven closed-centre hydraulics system with tandem gear pumps. FEATURES Total operating weight - 8060 kg (17769 lb) - Overall width - 2386 mm (7’8”) - Turning circle - 7900 mm (25’11”) - Travel speed - 40 kph (25 mph) - Engine power (kW/hp) - 74,5 kW (100 hp) (EU Stage 5) - Hydraulic System - Closed Centre - Pump Flow - 143 L/min (31 gpm) - Tear-out force / Loader - 4200 daN (9442 lbf) - Break-out force / Loader - 4600 daN (10341 lbf) - Lift capacity @ Max Height - 3700 kg (8157 lbs) - Lift height / Loader - 3510 mm (11’6”) - Max. reach - 7000 mm (22’11’’) - Max. depth - 5700 mm (18’10’’) - Tear-out force / Excavator - 4200 daN (9442 lbf) - Break-out force / Excavator - 6900 daN (15512 lbf)
