Hospital utensil washer TOPLINE

for healthcare facilityfor medical useprofessional

Overview High-performance washer‑disinfectors engineered for utility rooms and care utensils. The MEIKO TopLine range combines validated thermal disinfection, integrated drying and HEPA‑filtered recooling, system disinfection and advanced wash mechanics to ensure hygiene, traceable documentation and safe reuse of bedpans, urine bottles and similar items in clinical settings.

Key features

• STEAMSTOP: fully steam‑tight design that channels steam to the drain during programmes to prevent germ release, improve hygiene safety and reduce moisture damage to the appliance and room.
• THERMOCONTROL: dual temperature sensors that cross‑check measurements at the coldest point to guarantee required temperatures and exposure times (A0) for validated thermal disinfection.
• CHEMCODE: colour and shape coding of chemical connections (detergent, rinse aid with water softener) to prevent mix‑ups and simplify routine operation.
• CHEMCONTROL: sensor‑based monitoring of dosing function and quantity for detergent and rinse aid to optimise consumption and avoid limescale build‑up.
• SYSTEMDISINFECT+: automatic disinfection of the chamber, all water‑carrying pipes, nozzles and the water tank in each cycle to prevent recontamination and meet EN ISO 15883‑1 requirements.
• POWERCLEAN+: cleaning system with a telescopic rotary nozzle plus additional wash nozzles for effective interior cleaning across varied bedpan shapes; combines mechanical action, temperature and detergent for improved cleaning efficacy.
• COOLTOUCH: HEPA‑filtered air recooling delivering a drying effect and germ‑free cooling to reduce recontamination risk and allow immediate reuse.
• Automatic hood/door options: automatic opening/closing and automatic programme start on rack insertion or by touch/button to improve ergonomics and workflow.

Technology that makes a difference

• Standards compliance and documentation: programme runs are controlled and documented by selectable A0 values. ThermoControl ensures adherence to the set A0 (examples: 60, 600, 3000) so disinfection is validated per EN ISO 15883‑1 and EN ISO 15883‑3.
• Hygiene‑oriented chamber and piping: system disinfection and steam‑tight operation prevent recontamination and reduce pathogen spread from the utility room to adjacent areas.
• User‑oriented visual and coding systems: ChemCode and ChemControl minimise human error in chemical connections and dosing, streamlining daily operation and maintenance.

Operation & programme selection

• Flexible A0 selection: choose A0 = 60, 600 or 3000 to match routine cleaning, outbreak response or isolation requirements; select programme and press‑and‑hold the button — the display cycles A0 values; release when the desired A0 appears to start the programme.
• Programme automation: options for automatic hood/door operation and automatic programme start reduce manual handling and improve ergonomics.

Applications & benefits

• Designed for cleaning and disinfection of bedpans, urine bottles and other care utensils with integrated drying and filtered air cooling for immediate reuse.
• Provides validated disinfection performance, lowers risk of outbreaks originating in utility rooms and helps protect both patients and staff.

Technical specifications

• Series / product family: MEIKO TopLine (washer‑disinfectors for utility rooms and care utensils).
• Standards: compliant with EN ISO 15883‑1 and EN ISO 15883‑3 (disinfection & validation).
• Selectable A0 values: 60, 600, 3000 (programme‑controlled and documented).
• Thermal monitoring: ThermoControl with two cross‑checking sensors (measurement at coldest point).
• Disinfection: SYSTEMDISINFECT+ — automatic chamber and piping disinfection each cycle.
• Cleaning mechanics: POWERCLEAN+ with telescopic rotary nozzle and additional nozzles for enhanced mechanical action.
• Steam management: STEAMSTOP — steam‑tight routing to drain to prevent room contamination.
• Chemical handling: CHEMCODE (colour/shape coding) and CHEMCONTROL (sensor‑based dosing monitoring) for detergent and rinse aid.
• Cooling/drying: COOLTOUCH — HEPA‑filtered air recooling with drying effect.
• Optional automation: automatic hood/door opening & closing and automatic programme start.

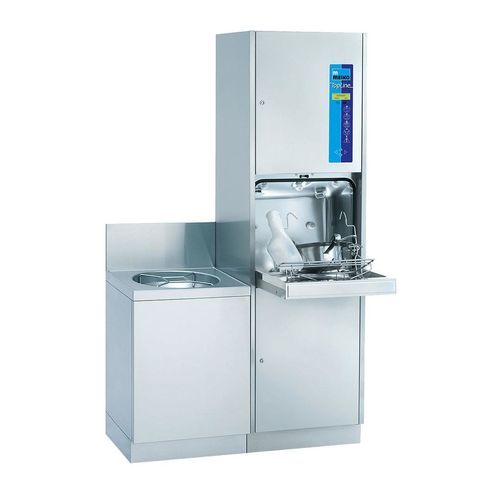

• Typical washware: bedpans, urine bottles and other care utensils; available as freestanding, wall‑mounted or combined care unit variants across the TopLine family.
