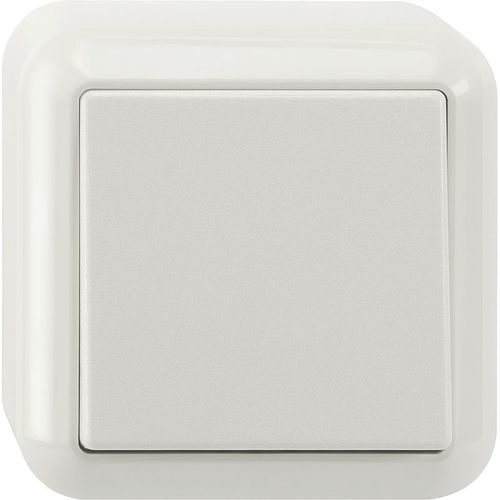

Light switch MEG3116-8719

rockerelectronicsurface-mount

Product overview

• Switch, single-pole 2-way, suitable for surface mounting.
• Color: Polar white.
• Actuator: Rocker.

Features

• Switch function: 1-pole, 2-way.
• Mounting method: screw fixing.
• Connections: screw terminal.
• Material: impact-resistant thermoplastic.
• Protection rating: IP20.

Packaging & Warranty

• Packaging units: 1 piece per individual packaging; additional packaging quantities available (multipack, carton, pallet quantities).
• Warranty: 18 months.

Sustainability

• Free of toxic heavy metals: Yes.
• Mercury-free: Yes.
• Packaging without plastic: No.
• Packaging with recycled cardboard: Yes.
• Take-back: Yes.
• CO2 footprint (total): 1 kg CO2 eq. (declared total life-cycle carbon footprint 0.4 kg CO2 eq., broken down by phases).
• Recyclability potential: 41%.
• WEEE marking: Product must not be disposed of in household waste and must be disposed of accordingly.

Document note
Datasheet, EU RoHS and REACh declarations and Product Environmental Declarations (PEP/Environmental Disclosure) are available (documents on manufacturer/distributor page).

Characteristics / Technical specifications

• Series: Merten HD / Merten.
• Product or component type: Switch (complete product).
• Product name (designation): Surface-mounted.
• Color: Polar white.
• Switch function: 1-pole 2-way.
• Actuator: Rocker.
• Enclosure variant: Surface (surface-mounted version).
• Attachment mode: By screw.
• Rated operational voltage [Ue]: 250 V.
• Rated current: 10 AX.
• Number of rockers: 1.
• Connections - terminals: Screw terminal.
• Material: Impact-resistant thermoplastic.
• Protection rating (IP): IP20.
• Packaging weight (single device): approx. 50,000 g (page indicates: 50,000 g).
• Packaging dimensions: various packaging heights/widths/lengths indicated (single-, multi- and pallet quantities).
• Warranty: 18 months.
• EAN Code: 4042811184117.
