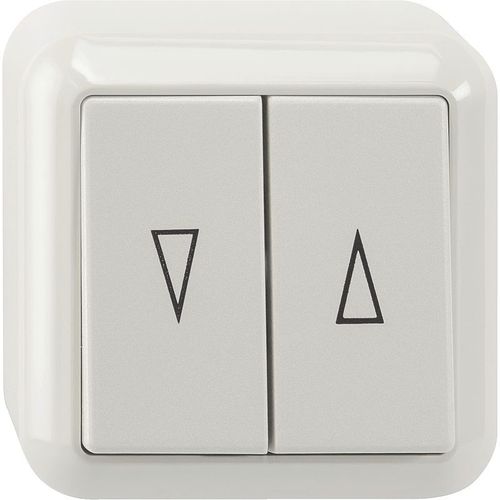

Roller shutter switch MEG3755

rockersurface-mountpolycarbonate

Short description
Surface-mounted roller shutter switch in polar white. Rocker operation; single-pole switching; polycarbonate housing. Suitable for controlling roller shutters and similar applications.

Product features (short)

• Colour: Polar white
• Mounting: Surface-mounted (screw-fixed)
• Switch function: 1-pole
• Actuator type: Rocker
• Max. switching current: 10 A
• Rated operating voltage: 250 V

Main documents
Product datasheet and sustainability/compliance declarations available (datasheet, EU RoHS statement, REACh statement, catalogue entries).

Sustainability
Mercury-free: Yes
Free of toxic heavy metals: Yes
Packaging with recyclable cardboard: Yes
Packaging without plastic: No
WEEE marking: Disposal according to applicable EU regulations required
SCIP number: 117d283f-e9d0-4ebe-87db-2956b3fadc20
REACh and RoHS declarations available.

Characteristics / Technical specifications

• Series: Merten HD
• Product / component type: Push button / switch
• Device representation: Complete mechanism
• Product family: Surface-mounted
• Colour: Polar white
• Switch function: 1-pole
• Actuator type: Rocker
• Locking: Electrical and mechanical
• Housing variant: Surface
• Mounting: Screw-fixed
• Rated operating voltage [Ue]: 250 V
• Max. switching current: 10 A
• Material: Polycarbonate
• Protection rating (IP): IP20
• Packaging units: VPE 1 Type: PCE; Quantity per pack: 1
• Packaging weight (VPE1): 56.000 g
• VPE 1 Height: 3.800 cm; VPE 1 Width: 6.200 cm; VPE 1 Length: 6.200 cm
• VPE 2 Type: BB1; VPE 2 Quantity: 10; VPE 2 Weight: 654.000 g; VPE 2 Height: 9.000 cm; VPE 2 Width: 17.300 cm; VPE 2 Length: 20.400 cm
• Warranty (contractual): 18 months
