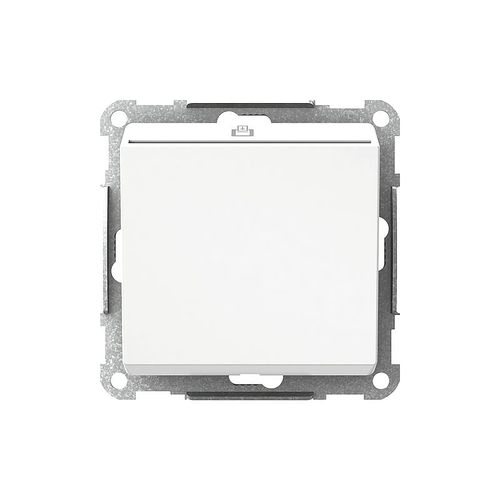

Key card switch WDE002053

electromechanicalrecessedABS

Product

• Name: Hotel card switch Exxact WDE002053
• Product reference on page: WDE002053
• Colour: White
• Material price group: EI

Overview

• Type: Card switch for control/activation via card
• Series: Exxact (range designed for renovation and for flush/surface installation depending on variants)
• Technology: Electromechanical, mechanism with mounting frame

Documents & media associated (main documents listed on the product page)
Product data sheet · Declaration of Conformity (Sustainability) · Declaration of conformity · Brochure · Promotional video · Certificate · Environmental Disclosure

Technical characteristics / specifications

• Series: Exxact
• Product or component type: Card switch
• Device application: Control
• Device representation: Mechanism with fixing frame
• Quantity per set: Set of 1 piece
• Technology type: Electromechanical
• Mounting device wiring: Flush-mounted
• Switch pattern: [6 / 2 / 1]
• Switch function: 2-pole 2-way
• Rated operational voltage [Ue]: 250 V
• Rated current: 16 A / 10 AX
• Network type: AC
• Colour: White
• Local signalling: White LED - 10 mA
• Terminals - connections: Screw terminals
• Number of loop terminals: 2
• Screw head type: Pozidriv No. 1 and slotted
• Terminal connection capacity: 1 x 1.5 - 2 x 2.5 mm² for solid conductors; 1 x 1.5 - 2 x 2.5 mm² for ferruled stranded conductors
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Optional fixing mode: By claw kit: insert · By screw: rocker
• Installation depth: 12 mm
• Height: 71 mm
• Width: 71 mm
• Projecting depth: 28 mm
• Standards: EN 60669-1
• Product certifications: FIMKO · SEMKO · CE · NEMKO
• Protection rating (IP): IP20
• Packaging units: Pack 1 Type: PCE · Devices per pack: 1
• Pack 1 dimensions (H x W x L): 5.800 cm x 7.800 cm x 8.600 cm · Packaging weight: 102.000 g
• Additional packaging info: Pack 2 quantity 12 / Pack 3 quantity 12 (logistics details on product page)
• Warranty: 18 months
