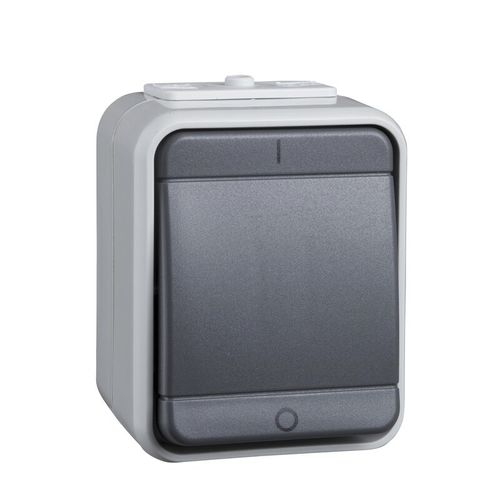

Light switch 441209rockerelectronicsurface-mount
Add to favorites
Compare this product
Characteristics
- Use
- light
- Type
- rocker
- Technology
- electronic
- Installation
- surface-mount
- Configuration
- double
- Material
- thermoplastic
- Style
- contemporary
- Applications
- commercial
- Shape
- rectangular
- Color
- gray
- Finish
- matte
- Protection class
- IP44
Description
Short description
2‑pole switch for ELSO Aqua‑Top, push‑in terminal; color: light/basalt grey. Article number: 441209. Material price group: EA. Recommended retail price: €20.40 (excl. VAT).
Product data
Series: ELSO
Compatibility: ELSO Aqua‑Top
Product type: Switch (complete product)
Color: Grey (RAL 7035), matt
Quantity per set: Set of 10 pieces
Actuator: Rocker
Housing variant: Surface-mounted
Switch function: 2‑pole / 1‑pole
Number of rockers: 1
Rated current: 10 A at 250 V AC
Marking: 1 - 0
Terminals: Push‑in: copper, terminal cross‑section 1.5–2.5 mm²
Material: Thermoplastic
Surface finish: Matt
Mounting: By screws
Ingress protection (IP): IP44
Dimensions & packaging
Height: 81 mm
Width: 65 mm
Installation depth: 53 mm
Packaging unit 1 (type): PCE — Items per pack: 1 — PU1 height: 5.0 cm — PU1 width: 8.0 cm — PU1 length: 6.5 cm — Packaging weight: 128.7 g
Packaging unit 2 (type): BB1 — PU2 quantity: 10 — PU2 height: 6.4 cm — PU2 width: 18.3 cm — PU2 length: 34.0 cm — PU2 weight: 1.287 kg
Warranty & identifiers
Warranty: 18 months
EAN: 4013984108194
Article number / internal reference: 441209
Sustainability & environmental figures
Mercury‑free: Yes
Packaging without plastic: Yes
Packaging with recycled cardboard: Yes
Take‑back: Yes
Recyclability potential: 7 %
Average recycled plastic content: 6 %
CO2 footprint (total lifecycle): ~1 kg CO2 eq.
Manufacturing phase (A1–A3): ~0.47 kg CO2 eq.
Distribution phase (A4): ~0.023 kg CO2 eq.
Installation phase (A5): ~0.011 kg CO2 eq.
Use phase (B2,B3,B4,B6): ~0.15 kg CO2 eq.
End‑of‑life (C1–C4): ~0.39 kg CO2 eq.
EU‑RoHS / REACh / other declarations: Documents available (see manufacturer's product documentation).
Technical specifications
2‑pole switch for ELSO Aqua‑Top, push‑in terminal; color: light/basalt grey. Article number: 441209. Material price group: EA. Recommended retail price: €20.40 (excl. VAT).
Product data
Series: ELSO
Compatibility: ELSO Aqua‑Top
Product type: Switch (complete product)
Color: Grey (RAL 7035), matt
Quantity per set: Set of 10 pieces
Actuator: Rocker
Housing variant: Surface-mounted
Switch function: 2‑pole / 1‑pole
Number of rockers: 1
Rated current: 10 A at 250 V AC
Marking: 1 - 0
Terminals: Push‑in: copper, terminal cross‑section 1.5–2.5 mm²
Material: Thermoplastic
Surface finish: Matt
Mounting: By screws
Ingress protection (IP): IP44
Dimensions & packaging
Height: 81 mm
Width: 65 mm
Installation depth: 53 mm
Packaging unit 1 (type): PCE — Items per pack: 1 — PU1 height: 5.0 cm — PU1 width: 8.0 cm — PU1 length: 6.5 cm — Packaging weight: 128.7 g
Packaging unit 2 (type): BB1 — PU2 quantity: 10 — PU2 height: 6.4 cm — PU2 width: 18.3 cm — PU2 length: 34.0 cm — PU2 weight: 1.287 kg
Warranty & identifiers
Warranty: 18 months
EAN: 4013984108194
Article number / internal reference: 441209
Sustainability & environmental figures
Mercury‑free: Yes
Packaging without plastic: Yes
Packaging with recycled cardboard: Yes
Take‑back: Yes
Recyclability potential: 7 %
Average recycled plastic content: 6 %
CO2 footprint (total lifecycle): ~1 kg CO2 eq.
Manufacturing phase (A1–A3): ~0.47 kg CO2 eq.
Distribution phase (A4): ~0.023 kg CO2 eq.
Installation phase (A5): ~0.011 kg CO2 eq.
Use phase (B2,B3,B4,B6): ~0.15 kg CO2 eq.
End‑of‑life (C1–C4): ~0.39 kg CO2 eq.
EU‑RoHS / REACh / other declarations: Documents available (see manufacturer's product documentation).
Technical specifications
- Series: ELSO
- Compatibility: ELSO Aqua‑Top
- Product type: Switch (complete product)
- Color: Grey (RAL 7035), matt
- Function: 2‑pole / 1‑pole, 1 rocker
- Rated current: 10 A at 250 V AC
- Terminals: Push‑in copper, terminal cross‑section 1.5–2.5 mm²
- Material: Thermoplastic
- Mounting: By screws
- Ingress protection: IP44
- Dimensions: H 81 mm × W 65 mm × D 53 mm
- Packaging units: 1 pc (PCE) / 10 pcs (BB1)
- Packaging weight (single unit): 128.7 g
- Warranty: 18 months
- EAN: 4013984108194
