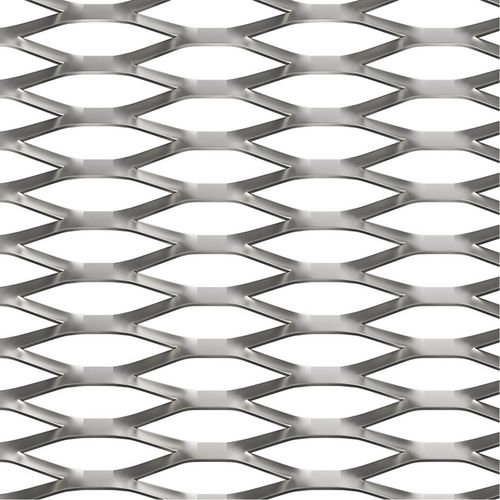

Aluminum wire mesh XP204

for railingfor fencingcladding

ALUMINCO XPAND is a new polymorphic, light, cost effective architectural design screen that belongs to the Mesh product category and for its treatment 2mm aluminum alloy sheets 1050-H14 or 5754-H22 are used, ideal for anodising electrostatic paint respectively. Xpand comes in various dimensions and designs with cells’ width varying from 40mm to 175mm, cell’s height from 5mm to 44mm and air permeability from 25% to 69%. The final product, depending on the design, can vary from 2440mm to 7500mm in length and from 1000mm to 1500mm in width. STRAND WITDH: 8 mm LWO: 80 mm SWO: 20 mm OVERALL THICKNESS: 13.7 mm OPEN AREA: 54% DIMENSIONS: 1000 X 2200 mm 1000 X 2500 mm 1000 X 1900 mm 1500 X 2500 mm
