Roof sandwich panel MONOROOF® TPO

metal facing

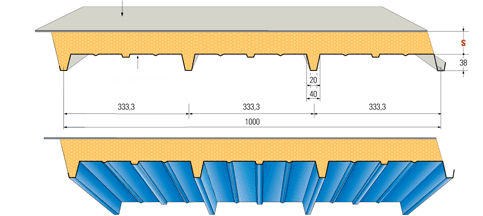

Self-supporting insulated metal panel, pre-waterproofed with G4 MONOROOF® TPO SYNTHETIC LAYER, for flat and pitched roofs. The synthetic layer in flexible TPO, 1.6 mm thick, is reinforced with a 50 g/m2 layer of polypropylene and a 100 g/m2 polyester non-woven fabric. For additional technical information, refer to the G4 MONOROOF® TPO technical manual. TABLE OF SAFE SPANS The spans l in metres, as a function of a uniformly distributed overload p (daN/m2), have been calculated to provide a deflection f <= l/200 considering only the sheet as the resisting cross-section (the contribution of the polyurethane has not been taken into account) in accordance with standard UNI CNR - 10022/84 and the AIPPEG design guidelines. Data for the 0.5 mm thickness sheet has been obtained from laboratory tests.
