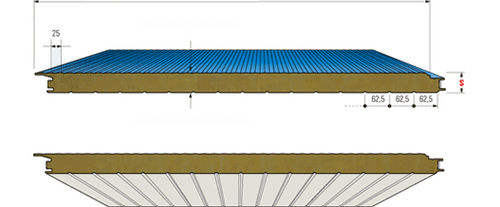

Wall sandwich panel SUPERWALL® HF

metal facingrock wool core

Self-supporting metal panel system, insulated with rockwool foam, with a concealed-fixing method for high quality industrial and commercial buildings, where good aesthetics are paramount. The SUPERWALL® HF panel, manufactured in accordance with a system patented by Metecno, consists of two micro-ribbed steel sheets, with an insulation core of orientated fibre high density rockwool, arranged perpendicularly to the plane of the panel and positioned in strips, laid longitudinally with off-set joints and transversely compacted, in such a way as to completely fill the space between the metal facings. The special double labyrinth joint of this panel, provides mechanical resistance and insulation superior to any other wall panel product of this kind, the panel external micro-V increases the aesthetic appeal of this panel, which can be orientated both vertically and horizontally as required. Because of the particular shape of the joint, blind fastening are applied to the V-cut on the male edge of the outside sheet. Two screws with center distance of 30 mm should be used for each panel and each stud. Outside walls are made mounting such panels one next to the other.
