Year-round utility with heating and cooling from a single unit.

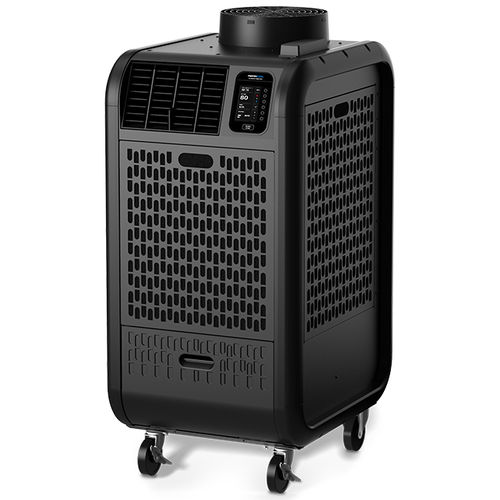

The Climate Pro D12 heat pump is an all-in-one system for temperature control in any season. It delivers 11,450 Btu/h of cooling and 9,900 Btu/h of heating — with a space-saving footprint of just over 4 sq. ft.
Minimal electricity. Runs on 115V with 15 amp circuit and consumes just 1.38 kW (cooling) or 1.25 kW (heating).
Effective cooling in conditions from 65° to 95°F.
Provides heating in conditions from 24° to 80°F (with plenum and air entering outdoor heat exchanger).
Avoid downtime from overheated electronics and lost productivity from employee discomfort.
The Climate Pro D12 brings advanced design to give you the best in safety and ease of operation.
Programmable electronics for automatic operation after hours and on weekends.
Wireless connectivity-ready for remote monitoring and e-notifications of performance.
Quick-connect nozzle for simple, time-saving setup.
Quiet operation. At highest speed with condenser duct, sound level 61 dB(A) — about as much sound as an electric toothbrush.
Electronic Features
Control Panel - Programmable
Electrical Characteristics
Voltage Requirement - 1 Phase, 115 V, 60 Hz
Total Power Consumption - Cooling: 1.38 kW, Heating: 1.25 kW
Current Consumption - Cooling: 12.1 amps, Heating: 13.3 amps
Recommended Fuse Size - 15 amps
NEMA Plug Configuration - 5-15P
Min. - Max. Voltage - 104 - 127 V
Fans
Motor Output - 0.055 kW Evaporator
0.120 kW Condenser
Indoor Heat Exchanger (Supply)
Fan Type - Centrifugal
Max. Air Flow - High/Mid/Low - 420/340/280 CFM
Max. External Static Pressure - 0.31 IWG
