Targeted heating or cooling in any season.

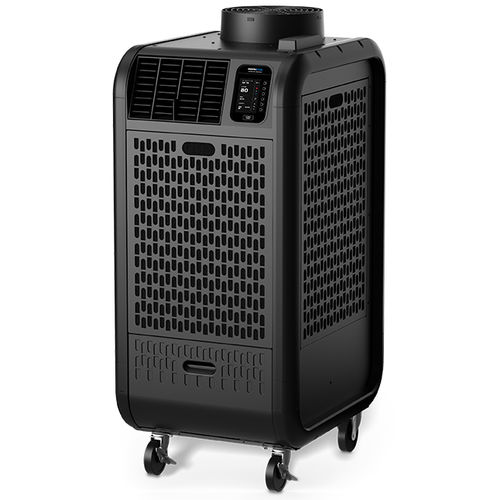

With a space-saving footprint of slightly over 4 sq. ft., the Climate Pro D18 delivers 15,000 Btu/h of spot cooling and 13,100 Btu/h of supplemental heating. It’s a year-round solution for keeping people comfortable and productive — and for keeping electronics up and running.
Modest power usage. Runs on 115V/20 amp circuit and consumes 1.56 kW (cooling) and 1.31 kW (heating).
Effective cooling in conditions from 65° to 95°F.
Provides heating in conditions from 24° to 80°F (with plenum and air entering outdoor heat exchanger)
The Climate Pro D18 features advances that distinguish the entire Climate Pro Series — so you get added assurances of safety and ease of operation.
Programmable electronics for automatic operation after hours and weekends.
Wireless connectivity-ready for remote monitoring and e-notifications of performance.
At highest speed with condenser duct, sound level is 65 dB(A) — similar to sound levels of a conversation with friends.
Electronic Features
Control Panel - Programmable
Electrical Characteristics
Voltage Requirement - 1 Phase, 115 V
Total Power Consumption - Cooling: 1.56 kW, Heating: 1.31 kW
Current Consumption - Cooling: 15.1 amps, Heating: 15.8 amps
Recommended Fuse Size - 20 amps
NEMA Plug Configuration - 5-20P
Min. - Max. Voltage - 104 - 127 V
Fans
Motor Output - 0.055 kW Evaporator
0.120 kW Condenser
Indoor Heat Exchanger (Supply)
Fan Type - Centrifugal
Max. Air Flow - High/Mid/Low - 540/440/350 CFM
Max. External Static Pressure - 0.31 IWG
Outdoor Heat Exchanger (Exhaust)
Fan Type - Centrifugal
Max. Air Flow - 825 CFM
Max. External Static Pressure - 0.19 IWG
Compressor
Type - Hermetic Rotary
Output - 0.9 kW
